Environmental range
The 398800402: Rated -40°C to 105°C operating. PA/Nylon black housing. ROHS3 compliant.
Sourcing and lifecycle
Active lifecycle. Sourced and quoted to order against an RFQ through independent distribution. ROHS3 compliant.

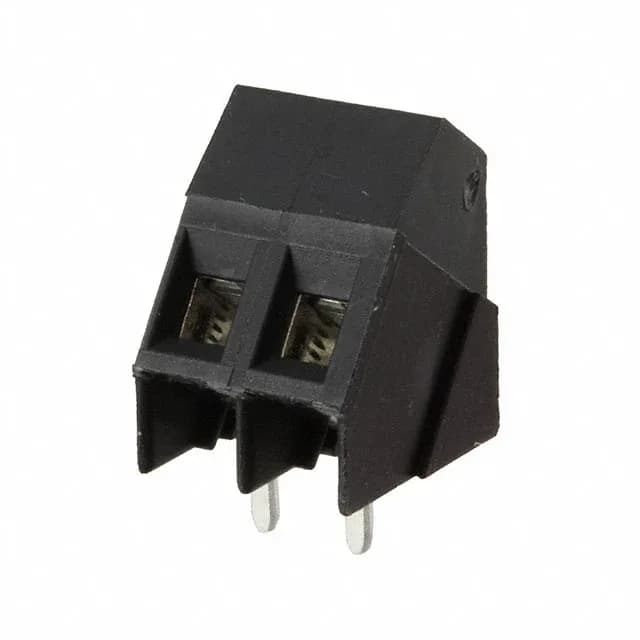

Molex Eurostyle 398800402, 2-Pos 5.08mm PCB Terminal Block
MPN398800402
Active
Molex Eurostyle 39880 terminal block, 398800402, 2 positions per level, 0.200" (5.08mm) pitch, 17.5 A at 300 V, through-hole 35-degree angle mount, screw rising cage clamp, 12-30 AWG, tin-plated copper contacts, PA/Nylon black housing, -40 to 105 °C.
$1.22Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEurostyle 39880
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Eurostyle 39880 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 17.5 A |
| Wire gauge | 12-30 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Housing material | Polyamide (PA), Nylon |
| Clamp material - plating | Copper Alloy - Nickel Plated |
| Screw material - plating | Copper Alloy - Nickel Plated |
| Contact material - plating | Copper - Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Screw thread | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Mating orientation | 35° (145°) Angle with Board |
| Positions per level | 2 |
Product details
Frequently asked questions
Can I use 395443005 as a replacement for 398800402?
Not directly — the 395443005 is a 5-position horizontal-entry block rated 15 A, while the 398800402 is a 2-position 35°-angle block rated 17.5 A. The pitch and wire range match, but the orientation, position count, and current rating differ. Check your BOM position count and wire exit direction before substituting.
Where can I buy the Molex 398800402 and how is it quoted?
Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim, no price figure on this page.
