Molex 398890042

Molex Eurostyle 398890042, 2-Position 5.08mm PCB Terminal Block, 17.5 A

MPN398890042
Active

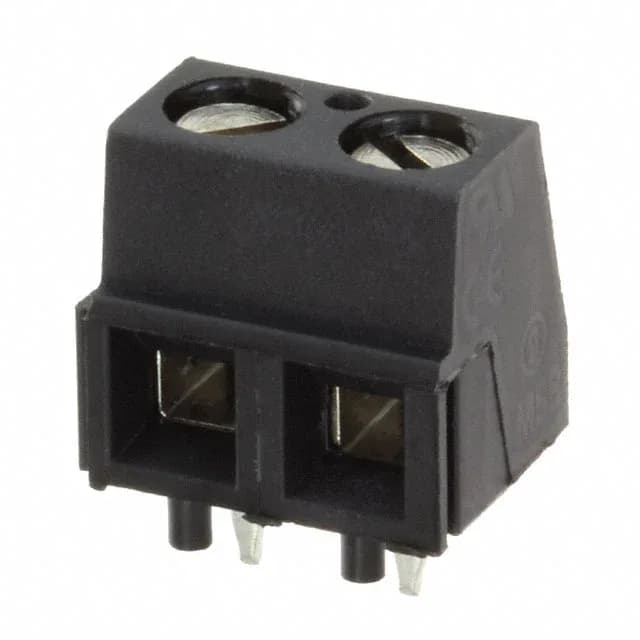

Molex Eurostyle 39889 398890042, 2-position side-entry PCB terminal block, 0.200" (5.08mm) pitch, 17.5 A, 300 V, screw-clamp 14-30 AWG, through-hole horizontal mount, black PA66 housing, interlocking side feature, ROHS3 compliant.

$1.13Ref. price · indicative, final on quote
Molex 398890042 datasheet (PDF)
RoHSROHS3 Compliant
SeriesEurostyle 39889
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

398890042 key specifications
ParameterValue
SeriesEurostyle 39889
MountingThrough Hole
Voltage300 V
Current17.5 A
Wire gauge14-30 AWG
Wire terminationScrew
Operating temperature-40°C ~ 105°C
ColorBlack
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingCopper Alloy - Nickel Plated
Screw material - platingCopper Alloy - Nickel Plated
Contact material - platingCopper Alloy - Tin Plated

All specifications

398890042 additional specifications
ParameterValue
Pitch0.200\" (5.08mm)
PackageBulk
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.6 Nm (5.3 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level2

Product details

The 398890042: Active lifecycle status. ROHS3 compliant. No EOL notice or successor on record.

How it compares — 395443005

The closest functional peer is the Eurostyle ESE 39544 series 395443005 — also a 0.200" (5.08mm) pitch, 300 V, black PA66 housing, horizontal board-entry block. Key differences: the 395443005 has 5 positions (vs 2), uses a rising cage clamp (vs a simple screw clamp), is rated 15 A (vs 17.5 A), and its clamp material is steel with zinc plating (vs copper alloy nickel). The 398890042 will not drop into a panel wired for the 395443005 without rewiring — the screw-clamp termination and position count are different. Buyers cross-referencing an existing 395443005 BOM should verify the wire termination style and current requirement before substituting.

Frequently asked questions

What compliance documentation does Molex provide for 398890042?

The 398890042 is ROHS3 Compliant. For full documentation — material declarations, REACH statements, or any UL/VDE certification — request the official CoC and test reports through your distributor at time of quote.

Will 398890042 drop into a panel specified around 395443005 without rewiring?

Both parts share the same 0.200" (5.08 mm) pitch and through-hole mount, and both are side-entry screw-clamp terminal blocks, but the 398890042 is a 2-position unit versus the 5-position (395443005) and 8-position (395443008) members of the Eurostyle ESE 39544 series — they are not direct pin-compatible replacements. If the panel was laid out for a 5-position block, a 2-position unit will not fill those extra three positions; wiring changes would be required. Confirm circuit count match before substituting.
