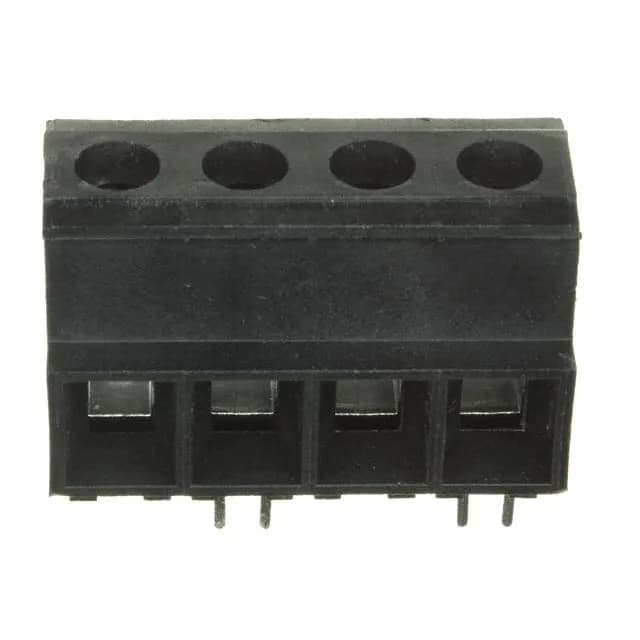

Molex Eurostyle 39910 399100104, 4-position PCB terminal block, 0.400" (10.16mm) pitch, 60 A, 600 V, through-hole, screw rising cage clamp, 6-18 AWG, black thermoplastic housing, M4 screw, bulk.
| Parameter | Value |
|---|---|
| Series | Eurostyle 39910 |
| Mounting | Through Hole |
| Voltage | 600 V |
| Current | 60 A |
| Wire gauge | 6-18 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -40°C ~ 130°C |
| Color | Black |
| Housing material | Thermoplastic |
| Clamp material - plating | Brass - Nickel Plated |
| Screw material - plating | Bronze - Tin Plated |
| Contact material - plating | Copper - Tin Plated |
| Parameter | Value |
|---|---|
| Pitch | 0.400\" (10.16mm) |
| Package | Bulk |
| Screw thread | M4 |
| Torque - screw | 1.36 Nm (12 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 4 |
The 399100104: Termination is via a screw-driven rising cage clamp (M4 screw, 1.36 Nm torque spec), which pulls the clamp up against the wire — no wire lug or ferrule required, though a ferrule on stranded wire keeps the strands tidy.
This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for your target quantity.
