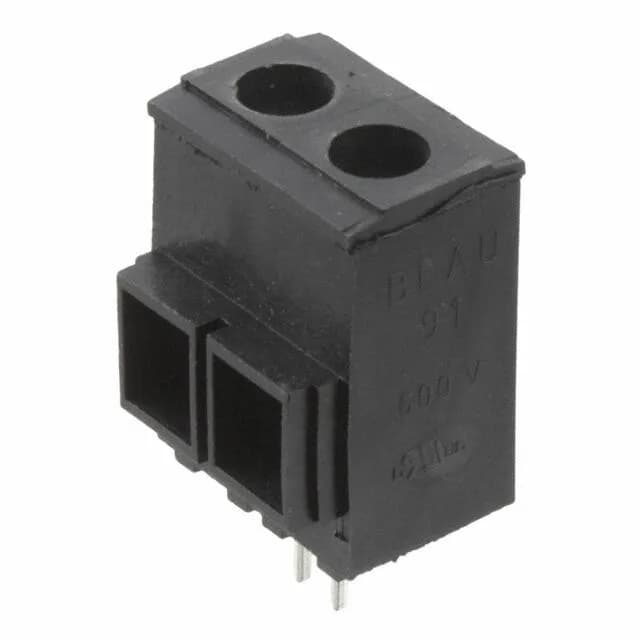

Design Engineering Note – Eurostyle 39910 399100302
Two positions on 10.16 mm centres occupy the board edge for a 40 A power entry.
Selection Check – 10.16 mm vs 5.08 mm Eurostyle
The closest functional sibling in the Eurostyle family is the 395443005 (5.08 mm pitch, 15 A, 300 V). The 399100302 carries 40 A and 600 V — more than double the current and voltage — on a pitch that is exactly twice as wide. The 10.16 mm pitch is the footprint differentiator: you cannot drop a 399100302 into a board laid out for a 5.08 mm terminal block without redrilling. The M4 screw and 1.36 Nm torque also contrast with the M3 / 0.51 Nm of the 39544 series — the larger screw handles the heavier wire and higher clamp force needed for 40 A.
