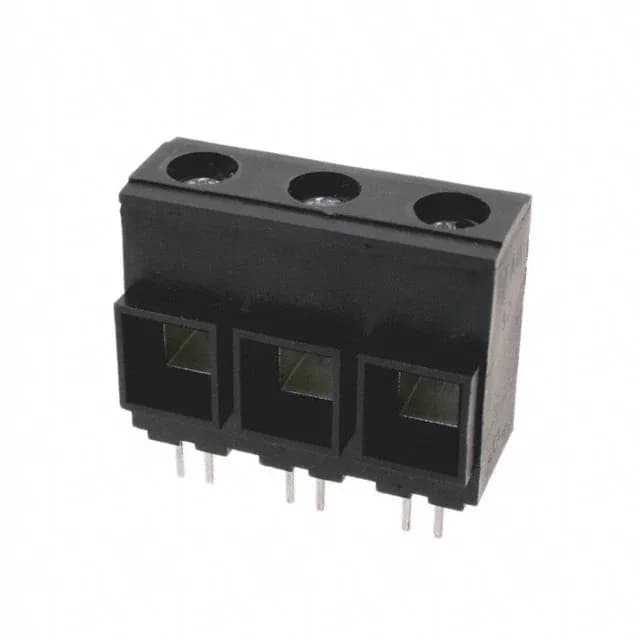

Molex Eurostyle 39920 399200503, 3-position side-entry PCB terminal block, 0.591" (15.00mm) pitch, 85 A, 600 V, screw-rising cage clamp, tin-plated copper contacts, black thermoplastic housing, -40°C to 130°C, 3-14 AWG, M5 screw, through-hole, bulk.
| Parameter | Value |
|---|---|
| Series | Eurostyle 39920 |
| Mounting | Through Hole |
| Voltage | 600 V |
| Current | 85 A |
| Wire gauge | 3-14 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -40°C ~ 130°C |
| Color | Black |
| Housing material | Thermoplastic |
| Clamp material - plating | Brass - Nickel Plated |
| Screw material - plating | Steel, Stainless - Tin Plated |
| Contact material - plating | Copper - Tin Plated |
| Parameter | Value |
|---|---|
| Pitch | 0.591\" (15.00mm) |
| Package | Bulk |
| Screw thread | M5 |
| Torque - screw | 2.71 Nm (24 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 3 |
The 399200503: Mating orientation is horizontal with the board — side entry, so the wire runs parallel to the PCB. Termination is screw-rising cage clamp: the screw lifts a cage that clamps the wire against the current bar. Single level, 3 positions per level.
The pitch is 0.591" (15.00 mm).
The 395443005 is not a functional second-source for 399200503. It is a lower-current (15 A), smaller-pitch (5.08 mm) terminal block from a different Eurostyle sub-series (ESE 39544) and will not drop into the same board layout or handle the same power.
The 399200503 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
