Molex 399700103

Molex Eurostyle 39970 399700103

MPN399700103
Active

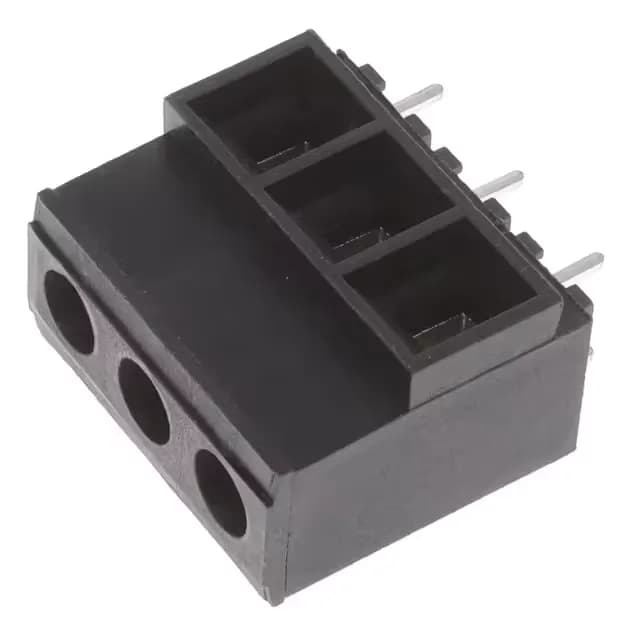

Molex Eurostyle 39970 399700103, 3-position terminal block, 0.400" (10.16 mm) pitch, 60 A, 300 V, 6 AWG, screw rising cage clamp, through-hole horizontal PCB mount, PBT housing, black, bulk.

$10.49Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEurostyle 39970
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

399700103 key specifications
ParameterValue
SeriesEurostyle 39970
MountingThrough Hole
Voltage300 V
Current60 A
Wire gauge6 AWG
Wire terminationScrew - Rising Cage Clamp
Operating temperature-40°C ~ 130°C
ColorBlack
Housing materialPolybutylene Terephthalate (PBT)
Clamp material - platingBrass - Nickel Plated
Screw material - platingBronze - Tin Plated
Contact material - platingCopper - Tin Plated

All specifications

399700103 additional specifications
ParameterValue
Pitch0.400\" (10.16mm)
PackageBulk
Screw threadM4
Torque - screw1.36 Nm (12 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level3

Product details

The Molex 399700103 is a 3-position, single-level PCB terminal block from the Eurostyle 39970 series. It uses a screw rising cage clamp to terminate 6 AWG wire — the cage pulls the conductor against a tin-plated copper contact bar, not the screw itself, so the wire is clamped evenly without strand damage. Rated 60 A per circuit, this block is sized for a main DC power rail or AC distribution point on a PCB, not a signal line.

Through-hole mounting with the wire entry parallel to the board — the screw terminals face the board edge, so the block sits at the PCB perimeter and the cables exit horizontally.

Frequently asked questions

Can Molex 399700103 handle 60 amps continuous?

Yes, the terminal block is rated 60 A per circuit. The rating assumes the conductor is properly terminated at the specified torque and the ambient temperature stays within the -40°C to 130°C operating range.

What is the proper torque setting for the screw terminals?

The specified torque is 1.36 Nm (12 Lb-In) for the M4 screw. Use a calibrated torque screwdriver to avoid stripping the PBT housing.

What is the wire size range for 399700103?

The terminal block accepts 6 AWG wire. The rising cage clamp grips solid or stranded copper conductors.
