The closest sibling in the Eurostyle family is the 395443005 — also a 5-position, single-level, horizontal-entry block, but on a 0.200" (5.08 mm) pitch rated 15 A with M3 screws and 12-30 AWG wire range. The 399700105 is the heavy-duty version: double the pitch, four times the current capacity, and a full 6 AWG wire acceptance. If your BOM calls for 60 A feeder circuits, the 395443005 won't carry the load — it's a control-wiring block. No footprint or screw-size overlap between the two.

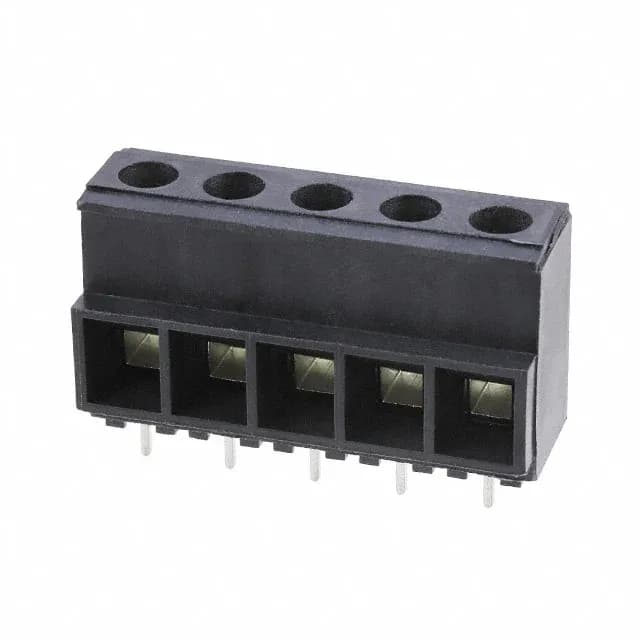

Molex Eurostyle 399700105, 5-Pos 10.16mm Pitch 60 A Terminal Block
MPN399700105
Active
Molex Eurostyle 39970 terminal block, 5 positions, 0.400" (10.16mm) pitch, 60 A, 300 V, 6 AWG, screw-rising cage clamp, through-hole, black PBT, M4 screws, 1.36 Nm torque, -40°C to 130°C, RoHS3, bulk.
$14.63Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEurostyle 39970
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Eurostyle 39970 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 60 A |
| Wire gauge | 6 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -40°C ~ 130°C |
| Color | Black |
| Housing material | Polybutylene Terephthalate (PBT) |
| Clamp material - plating | Brass - Nickel Plated |
| Screw material - plating | Bronze - Tin Plated |
| Contact material - plating | Copper - Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.400\" (10.16mm) |
| Package | Bulk |
| Screw thread | M4 |
| Torque - screw | 1.36 Nm (12 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 5 |
Product details
Frequently asked questions
What is the pitch and wire size for the 399700105 terminal block?
The pitch is 0.400" (10.16 mm) and it accepts up to 6 AWG wire. The screw-rising cage clamp uses an M4 screw torqued to 1.36 Nm (12 Lb-In).
Where can I buy the Molex 399700105 and how is it quoted?
The 399700105 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here.
