Molex 430450229

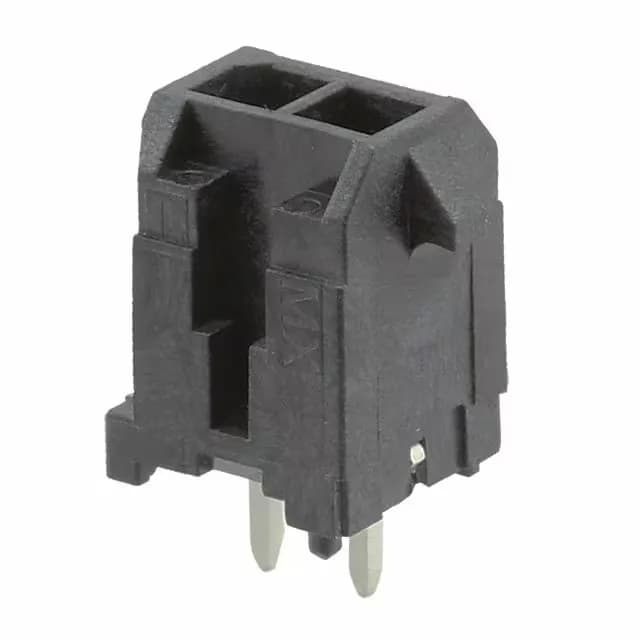

Molex Micro-Fit 3.0 430450229, 2-Pos Shrouded Header, 8A

MPN430450229
Active

Molex Micro-Fit 3.0 43045 series shrouded header, 2 positions, 2 rows, 3.00mm row spacing, 8A per circuit, gold mating finish / tin post, through-hole, locking ramp, -40 to 105°C, RoHS3.

$1.46Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-Fit 3.0 43045
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

430450229 key specifications
ParameterValue
SeriesMicro-Fit 3.0 43045
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600V
Current rating8A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.390\" (9.91mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

430450229 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows2
Positions2
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The Molex 430450229 is a 2-position, 2-row member of the Micro-Fit 3.0 43045 series — a shrouded through-hole header designed for board-to-cable/wire interconnects.

The 8 A per circuit is the headline number, but the real load-bearing spec for procurement is the contact plating. The tin post is standard for solder-joint reliability; the gold mating surface handles the wipe cycles without oxide build-up. The locking ramp fastening type and full 4-wall shrouding together mean this connector stays mated under vibration and the male pins are protected from bending during handling. If your assembly sees a shaker table or a vehicle frame, that locking ramp is what keeps the pair together — the latch is audible when it seats. The UL94 V-0 LCP housing also means it's acceptable inside equipment enclosures that require a flammability rating, which covers most industrial and telecom gear.

Frequently asked questions

Is the 430450229 RoHS compliant?

Yes, the 430450229 is RoHS3 compliant per the manufacturer's listing.
