The Molex 430450600 is a 6-circuit, dual-row, right-angle header from the Micro-Fit 3.0 43045 series. The tin-plated contacts (mating and post side) and 4-wall shrouding with a locking ramp make it a solid choice for applications where vibration resistance and a positive mate are required — automotive harnesses, industrial controls, medical equipment, and telecom gear all show up in its application list.

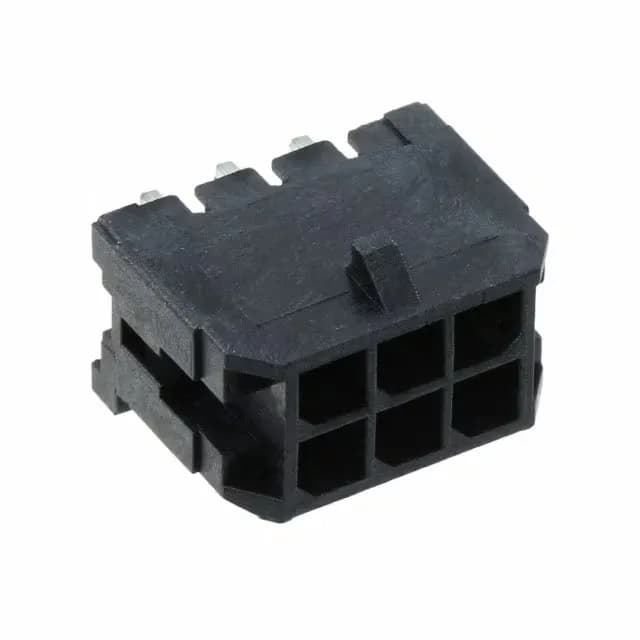

Molex Micro-Fit 3.0 430450600 Header, 6 Pos, 3mm, 8A
MPN430450600
Active
Molex Micro-Fit 3.0 43045 series, 430450600, Header, 6 Positions, 2 Rows, 0.118" (3.00mm) Pitch, Through Hole, Right Angle, Solder, Tin, 8A, 600V.
$2.2Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-Fit 3.0 43045
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43045 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600V |
| Current rating | 8A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass Alloy |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What is the pitch of 430450600?
The pitch is 0.118" (3.00 mm), which is standard for the Micro-Fit 3.0 series and determines the PCB footprint for the mating receptacle.
Does 430450600 have a locking ramp?
Yes, the fastening type is a locking ramp, which provides a positive mechanical latch for vibration-resistant mating.
What is the current rating of the Micro-Fit 3.0 header 430450600?
It is rated 8 A per circuit at 600 V, with tin-plated contacts suited for moderate-duty applications.
