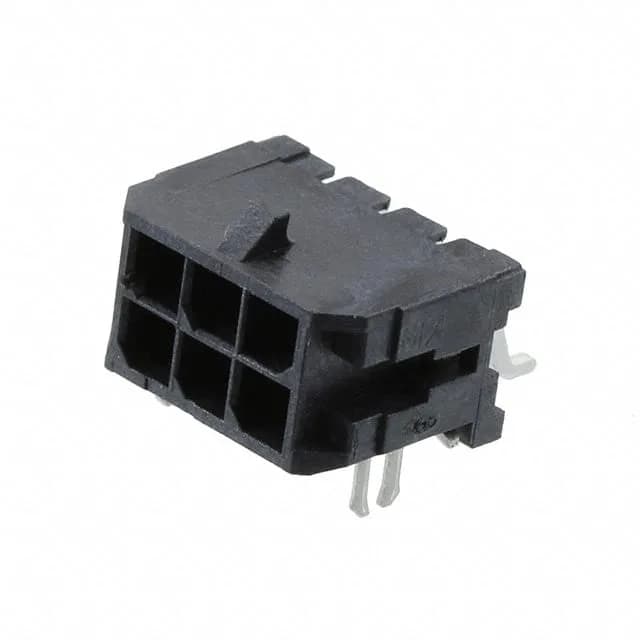

Molex Micro-Fit 3.0 430450607, 6-circuit dual-row 3.00 mm pitch right-angle SMT header, 8 A per circuit at 600 V, gold-plated mating contacts over tin solder tails, 4-wall shroud with locking ramp and board lock.
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43045 |
| Gender | Male Pin |
| Mounting type | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600V |
| Current rating | 8A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Sourcing this connector
Molex 430450607 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Molex and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
Frequently asked questions
What style is the 430450607?
The 430450607 is a Board to Cable/Wire header, meaning it connects a PCB to a wire harness via a mating receptacle.
What compliance documentation does Molex provide for the 430450607?
The 430450607 is ROHS3 compliant and carries a UL94 V-0 flammability rating for the LCP housing material.
