What This Connector Is and Where It Fits

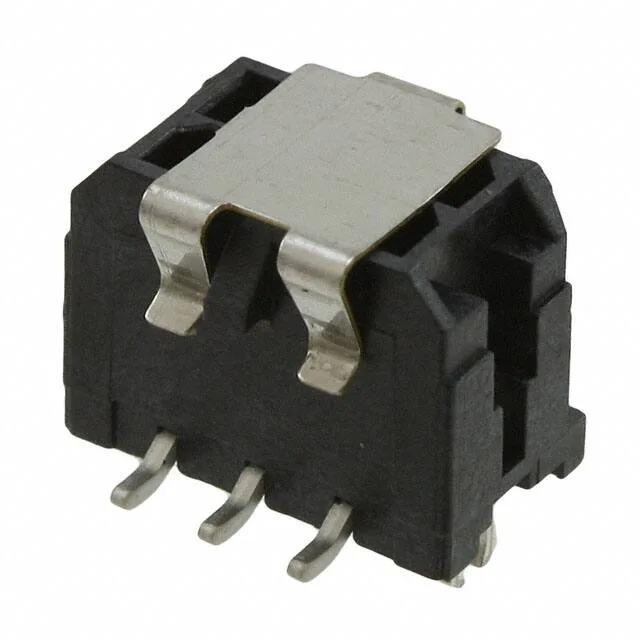

The Molex 430450616 is a 6-circuit, dual-row surface-mount header from the Micro-Fit 3.0 43045 series. It's a board-to-wire interconnect — the header solders to the PCB and mates with a crimp-style receptacle housing (the matching half carries the wires). The 3.00 mm pitch gives enough room between contacts for the 600 V rating without blowing up the board footprint, and the 8 A per-circuit rating puts it in the power-interconnect class, not signal. Typical applications include automotive, industrial, medical, and telecom harness assemblies where vibration resistance and a positive lock matter.
Key Features That Drive the Fit
The 15.0 µin gold plating on the mating contacts handles repeated mating cycles without the fretting corrosion you'd get from tin-on-tin in a high-vibration environment. The solder tails get a thick 100.0 µin tin finish — standard for reflow, no surprises. The 4-wall shrouding protects the pins during handling and guides the receptacle into alignment; the locking ramp on the shroud gives an audible click when fully mated, which matters when the connector is buried in a harness bundle. Board lock features on the SMT feet hold the header in place during reflow and resist the shear force from the cable strain on the mated assembly.
Mounting and Termination Reality
This is a surface-mount header — it reflows onto the PCB, no through-hole. The 0.118" (3.00 mm) row spacing matches the pitch, so the footprint is a straightforward dual-row pad array. The LCP (Liquid Crystal Polymer) housing with glass fill handles the reflow profile without warping and carries a UL94 V-0 flammability rating, which is the standard for equipment inside an enclosure. The operating temperature range of -40°C to 105°C covers automotive underhood and industrial cabinet environments.
