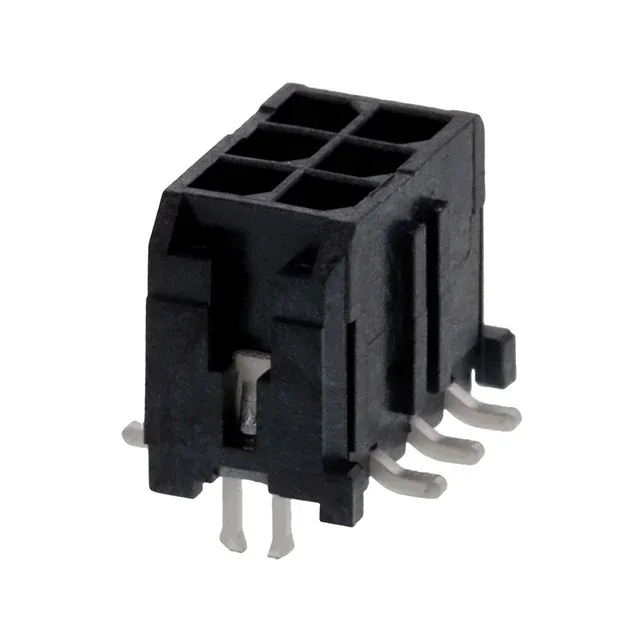

430450617 — Molex product photo
Molex

Molex Micro-Fit 3.0 430450617, 6-Pos SMT Header, 3 mm, 8 A

MPN430450617
Active

Molex Micro-Fit 3.0 43045 series, 430450617, 6-position dual-row shrouded header, 3.00mm pitch, surface-mount, gold mating / tin post contacts, 8 A per circuit, 600 V, board-lock, -40 to 105 °C, UL94 V-0, ROHS3 compliant.

$4.43Ref. price · indicative, final on quote
430450617 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

430450617 Technical Specifications
ParameterValue
SeriesMicro-Fit 3.0 43045
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600V
Current rating8A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.390\" (9.91mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions6
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Micro-Fit 3.0 SMT Header for Board-to-Wire Power

The Molex 430450617 is a 6-position, dual-row shrouded header from the Micro-Fit 3.0 43045 series, designed for board-to-cable/wire interconnects. Rated at 8 A per circuit and 600 V, with gold plating (30.0 µin) on the mating contacts, it suits power distribution in automotive, industrial, medical, and telecom equipment where vibration resistance and reliable current delivery are needed.

The 3.00 mm pitch is the defining footprint dimension for the Micro-Fit 3.0 family — it dictates the PCB layout and ensures compatibility with the full range of Micro-Fit 3.0 receptacle housings.

This header mates with any standard Micro-Fit 3.0 receptacle housing (e.g., 43025 series) that uses the 3.00 mm pitch, 6-circuit, dual-row layout. The locking ramp provides audible positive retention — a field technician will hear it latch. The surface-mount termination is compatible with standard reflow profiles; the board locks keep the part aligned during solder paste reflow.

Frequently asked questions

What is the mating connector for 430450617?

The 430450617 mates with any standard Micro-Fit 3.0 receptacle housing (43025 series) that uses the 3.00 mm pitch, 6-circuit, dual-row layout. The locking ramp provides positive retention.

Is 430450617 a surface mount header?

Yes, the 430450617 is a surface-mount (SMT) header with board locks for reflow alignment.

What is the current rating of 430450617?

The 430450617 is rated at 8 A per circuit at the stated operating temperature range.

Does 430450617 come in tape and reel?

Yes, the 430450617 is available in Tape & Reel (TR) for automated placement, and also in Cut Tape (CT) for prototype quantities.
