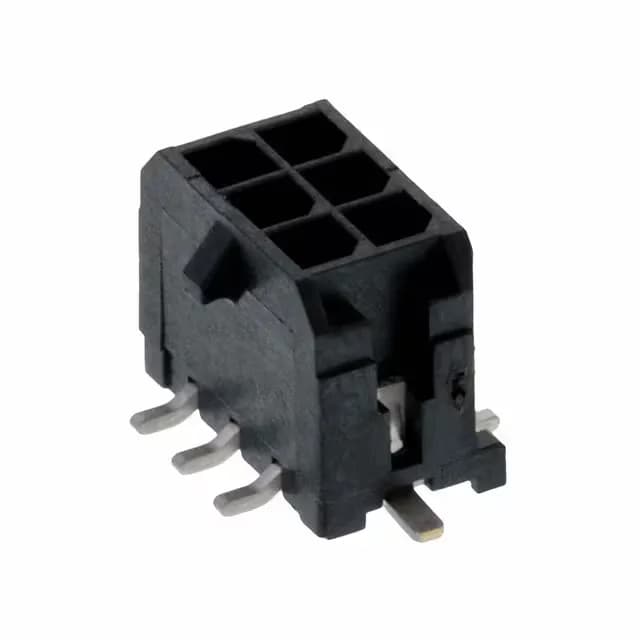

Molex Micro-Fit 3.0 43045 series header, order code 430450619, 6 circuits, dual row, 0.118" (3.00 mm) pitch, surface-mount solder termination, gold mating / tin post plating, 8 A per circuit, 600 V, 4-wall shroud with locking ramp, -40°C to 105°C, UL94 V-0, Active.
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43045 |
| Gender | Male Pin |
| Mounting type | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600V |
| Current rating | 8A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Sourcing this connector
Molex 430450619 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Molex and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
Frequently asked questions
What compliance documentation does this brand provide for 430450619?
The part is ROHS3 Compliant and carries a UL94 V-0 flammability rating for the LCP housing. REACH and other compliance documentation is available from the manufacturer.
