What it is and where it sits in the series

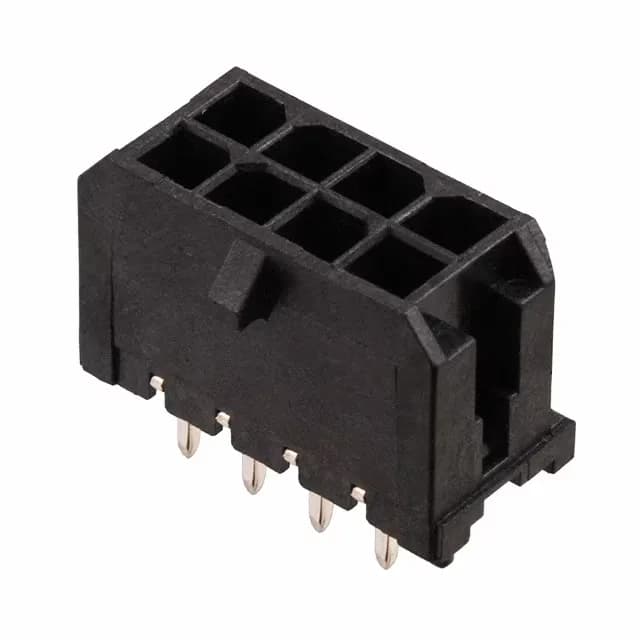

The Molex 430450827 is the 8-circuit member of the Micro-Fit 3.0 43045 header series — a dual-row, 4-wall shrouded male header with a 0.118 in (3.00 mm) pitch, sized for board-to-cable power distribution in harness assemblies. The header mates with the matching Micro-Fit 3.0 receptacle housings (the corresponding female housings use the same 3.00 mm row spacing and accept the standard Micro-Fit 3.0 crimp terminals). The locking ramp on the header body snaps into the housing latch and holds the pair under vibration — a detail that matters when the harness runs through a panel gland or cable tray with any mechanical disturbance. Tin plating covers both the mating face and the solder tail (60.0 µin / 1.52 µm on the mating side), which is the standard durability finish for this series — not the gold option, so count it as a production/run-in contact rather than a high-cycle testing contact. The brass contact body carries 8 A per circuit at the series voltage ceiling of 600 V, which puts this squarely in low-to-medium power distribution territory: the 8 circuits in a dual-row layout can move significant combined current in a compact footprint when the individual circuit load is moderate.
Shrouding, keying, and mate retention
The 4-wall shroud wraps all four sides of the contact array, and the board guide feature (moulded alignment towers at the header corners) indexes the header into its PCB aperture before the pins engage. In the field, a loose header pins-in-socket is a common call-back in harness-heavy applications — the shroud plus the locking ramp on the housing side makes accidental unmating harder than a simple friction-fit header would allow. The square pin contact shape ensures consistent wipe and self-centering in the receptacle contact beam during mating.
Board fit and material envelope
Through-hole vertical termination with a 0.125 in (3.18 mm) post length gives good paste fillet formation on the solder side and mechanical standoff from the board surface. The insulation height of 0.390 in (9.91 mm) and the LCP glass-filled housing material with a UL94 V-0 flammability rating set the thermal budget — the housing is rated to 105°C operating, which covers the thermal class typical in industrial enclosure and automotive under-hood environments without requiring a special high-temp variant.
Lifecycle and sourcing posture
The 430450827 carries an Active product status and is ROHS3 compliant. It ships in tray packaging. Quoted to order against BOM quantity — confirm the circuit count matches the BOM position and verify the mating half before committing to the line. No official successor or cross-reference is listed in the series record, so a parametric peer in the same Micro-Fit 3.0 43045 series (same pitch, same row spacing, different position count) is the only alternative worth evaluating if the 8-circuit count is the decision constraint.
