The Molex 430451008 is a 10-position, dual-row header from the Micro-Fit 3.0 43045 series, designed for board-to-cable/wire interconnects. It mounts as a surface-mount, right-angle component on the PCB, with a 3.00 mm pitch that balances routing density with the creepage needed for the 600 V rating. The 8 A per circuit rating is per-contact at the stated temperature — useful headroom for power distribution in automotive, industrial, or telecom harnesses where the cable side carries the load. Gold plating on the mating contacts at 30.0 µin (0.76 µm) supports repeated mating cycles without fretting corrosion — a solid choice for field-serviceable connections where the harness gets swapped a few times over the product life.

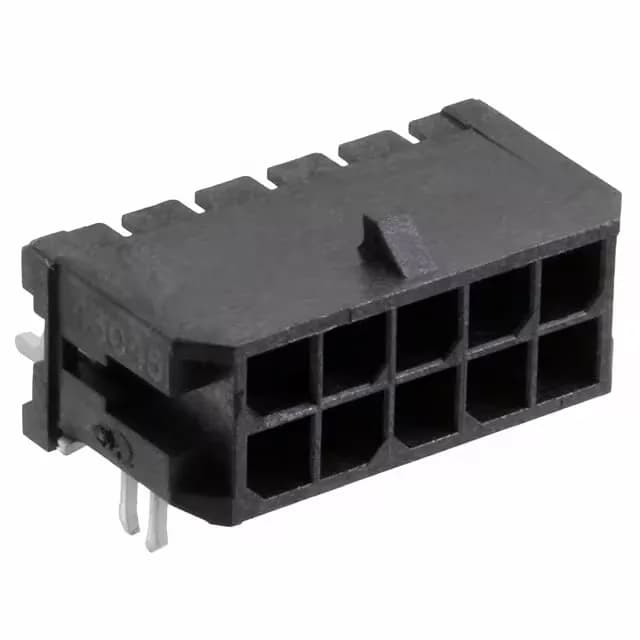

Molex Micro-Fit 3.0 430451008, 10-Pos R/A SMT Header, 3mm Pitch
MPN430451008
Active
Molex Micro-Fit 3.0 43045 series header, 430451008, 10-position dual-row right-angle SMT, 3.00 mm pitch, gold mating contacts, 8 A per circuit at 600 V, shrouded 4-wall with locking ramp, board lock, -40°C to 105°C.
$6.47Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-Fit 3.0 43045
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43045 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600V |
| Current rating | 8A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 430451008?
The 430451008 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for your target quantity.
