What this connector is

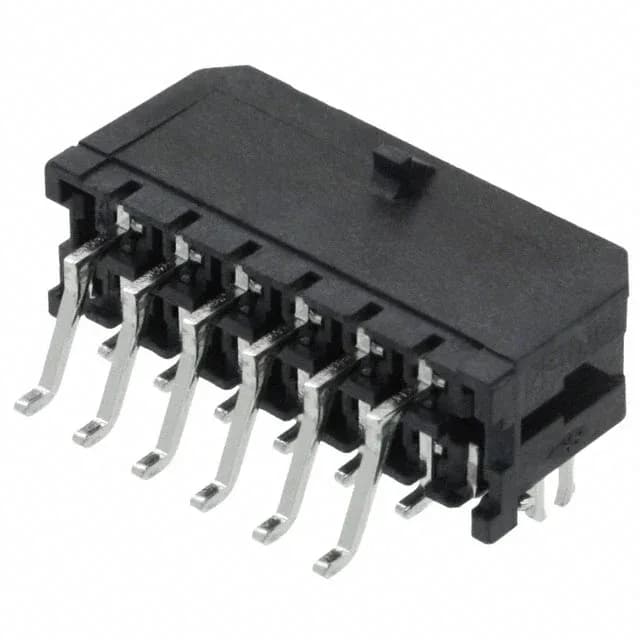

The Molex 430451206 is the 12-circuit dual-row member of the Micro-Fit 3.0 43045 series — a board-to-cable header built for harnesses that carry power or mixed signal across a panel or enclosure boundary. It mounts surface-mount right-angle, mates with the matching Micro-Fit 3.0 dual-row receptacle housing, and carries the square-pin Male Pin contact form factor standard across the series. The 3.00 mm pitch and 12-position dual-row layout are the two numbers that govern board footprint and circuit count match.
How it fits in the field
The locking ramp fastener is what keeps this connector mated under vibration — without it, thermal cycling and road noise work the housing free from the header. The full 4-wall shrouding adds physical protection to the pin array and provides the alignment geometry for blind-mate or panel-entry insertions where the assembler cannot see the pin field. The board-lock feature anchors the header to the PCB land pattern during SMT reflow, so the connector stays correctly oriented without a separate mounting hole — a practical advantage when the PCB side is crowded or already populated on the reverse side.
What drives the current and voltage selection
Compliance and environmental range
-40 to 105 °C operating range covers engine-adjacent automotive zones and industrial enclosures that see wide temperature swings. UL94 V-0 flammability rating meets the material ignition-resistance requirement for automotive interiors and most industrial equipment housings. ROHS3 compliance covers the EU automotive and industrial supply chain — no REACH or UL/VDE listing appears in the record, so if your procurement spec calls for a specific cert beyond ROHS3, that is a pre-RFQ clarification to raise with your Molex rep or distributor.
Mating half and termination
Mates with any dual-row 12-position Micro-Fit 3.0 receptacle housing in the 43045 series — the 3.00 mm pitch and dual-row 3.00 mm row spacing are consistent across the family. Termination is SMT solder to the board land pattern. The right-angle orientation places the connector flush against the PCB edge for panel-entry harness routing; the 0.290 inch (7.37 mm) insulation height sets the standoff above the board surface for under-housing clearance on populated boards.
