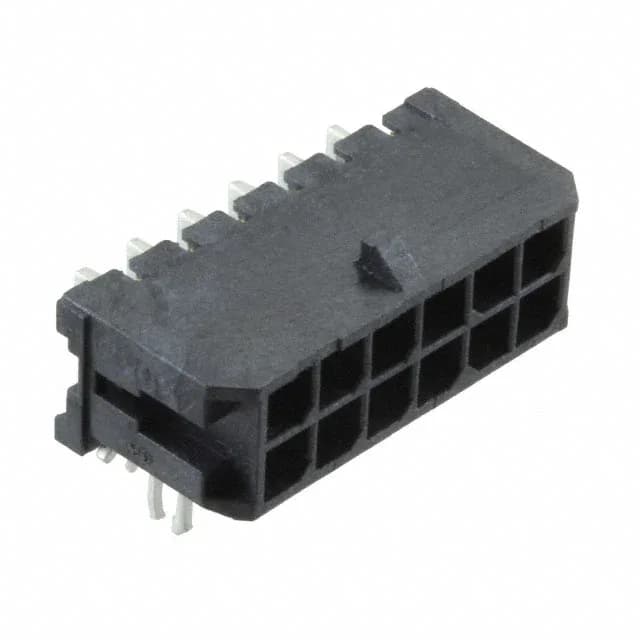

Molex Micro-Fit 3.0 43045 series, 430451223, right-angle through-hole header, 12 positions (2×6), 3.00 mm pitch, rated 8 A per circuit at 600 V, gold-plated mating contacts (30.0 µin), tin solder tails (100.0 µin), 4-wall shroud, locking ramp, board lock, UL94 V-0, -40°C to 105°C, ROHS3 compliant, tray.
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43045 |
| Voltage | 600 V |
| Current | 8 A |
| Mounting | Right Angle, Through Hole |
| Connector size | Header |
| Contact material | Brass |
| Insulation material | Glass Filled, Liquid Crystal Polymer (LCP) |
| Pitch | 0.118" (3.00 mm) |
| Package | Tray |
| Features | Board Lock |
| Positions | 12 |
| Shrouding | Shrouded - 4 Wall |
| Orientation | Board to Cable/Wire |
| Termination | Solder |
| Gender (Contact) | Male Pin |
| Contact plating | Gold |
| Locking (Fastening) | Locking Ramp |
| Rows | 2 |
The Molex 430451223 is the 12-circuit member of the Micro-Fit 3.0 43045 family — a dual-row, 3.00 mm pitch header with a full 4-wall shroud. The series targets wire-to-board and board-to-cable power interconnect in harness assemblies, and this part's right-angle through-hole body makes it a board-edge power feed or signal pass-through header in control units, DIN-rail enclosures, and panel assemblies.
ROHS3 compliant. No UL, VDE, or IEC certification is cited in the available record — the primary compliance flag is the ROHS3 entry.
The 430451223 mates with the matching Micro-Fit 3.0 receptacle housing in the same 43045 series — the 3.00 mm pitch and 4-wall shroud geometry define the keying and prevent cross-mating with other series at the same pitch.
Board to Cable/Wire, which means this header is the board-side termination in a wire-to-board power interconnect — it receives the matching receptacle housing and its crimp terminal on the wire side.
