What this connector is

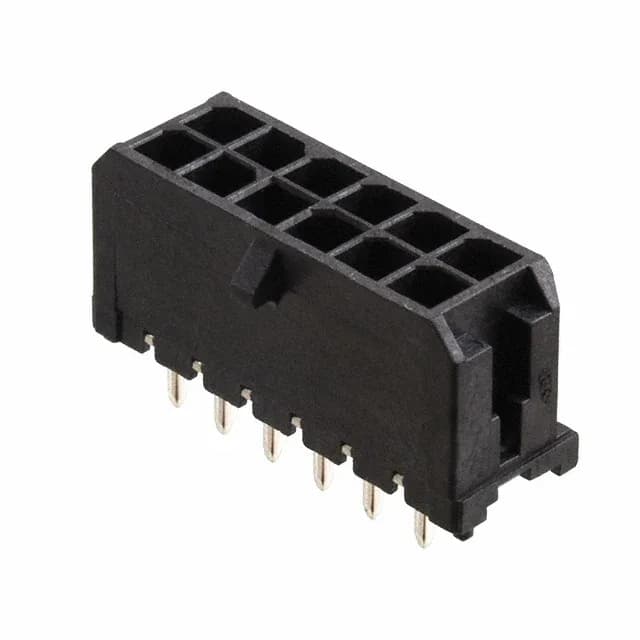

The Molex 430451227 is the 12-circuit member of the Micro-Fit 3.0 43045 series — a dual-row, 4-wall shrouded header designed for board-to-cable power interconnect in harness assemblies. The square male pins are brass with 60.0 µin (1.52 µm) tin plating on both the mating face and the solder tail, terminated via through-hole solder to the PCB. A locking ramp on the header body mates with the primary latch of the matching Micro-Fit 3.0 plug housing, and the 4-wall shroud around both rows provides mis-mate protection and added mechanical rigidity at the interface. Board guide features on the housing body help align the header during manual or automated placement.
Ratings that drive the fit decision
The insulation material is glass-filled liquid crystal polymer rated UL94 V-0, and the housing stands 0.390 inch (9.91 mm) above the board surface when seated. Operating range spans -40 °C to 105 °C — broad enough for automotive engine-adjacent zones and industrial floor installs. Contact post length is 0.125 inch (3.18 mm), with adequate solder fillet exposure for visual inspection.
Where it is used
Listed for automotive, industrial automation, medical device power rails, and telecommunications infrastructure — any environment where a reliable, vibration-locked board-to-wire power interconnect is required at 3.00 mm pitch. The locking ramp and shroud combination makes it a common choice in harness assemblies that see mechanical shock or continuous vibration, where a friction-fit header would back out over time. The all-tin plating is appropriate for production environments using standard tin-lead or lead-free solder reflow profiles on the board side.
