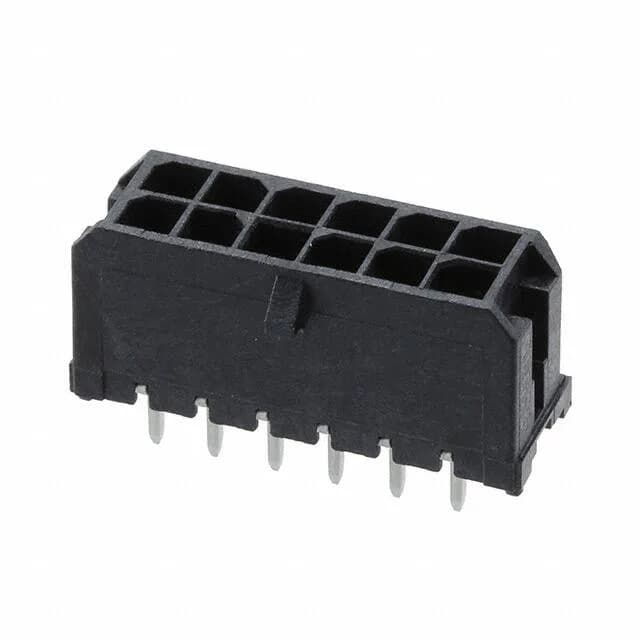

The Molex 430451229 is a 12-position, dual-row Micro-Fit 3.0 header with a 3.00 mm pitch, rated 8 A per circuit at up to 600 V — a step above typical signal-level headers and into light power territory. The connector uses a board-to-cable orientation with through-hole soldering, and all 12 circuits are loaded in the tray package. Gold-over-nickel on the mating face (30.0 µin / 0.76 µm) delivers the cycle life needed for field service, while the tin-plated solder tails (100.0 µin / 2.54 µm) survive a standard reflow or wave process without gold embrittlement concerns on the PCB side. The 4-wall shroud and locking ramp are the mechanical differentiators here — they keep the mating receptacle seated under vibration and prevent accidental pull-back, which matters in automotive harness and industrial enclosure environments where this series is routinely specified. Operating from -40 to 105 °C with an LCP glass-filled insulator rated UL94 V-0, the 430451229 suits sealed automotive, industrial automation, and medical equipment harnesses where temperature extremes and flame retardancy are required — citing the listed applications across Automotive, General Purpose, Industrial, Medical, and Telecommunications.
This is the board-mounted header half — it mates with the matching Micro-Fit 3.0 plug or receptacle housing using the series crimp terminal. The square male pin contact and locking ramp on the header interlock with the primary latch on the housing; confirm the housing polarity matches the board layout. The 0.125-inch (3.18 mm) solder tail length and 0.390-inch (9.91 mm) insulation height give a standard profile for through-hole board assembly — the board guide features aid alignment during placement.
