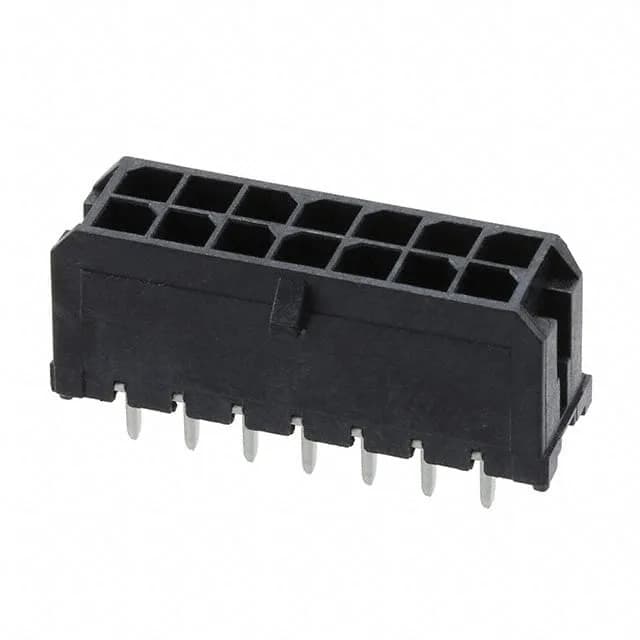

Molex Micro-Fit 3.0 43045 series header, 430451428, 14-position dual-row, 3.00mm pitch, through-hole, shrouded, gold mating contacts, 8A per circuit, 600V, locking ramp, -40 to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43045 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600V |
| Current rating | 8A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The Molex 430451428 is a 14-position dual-row header from the Micro-Fit 3.0 43045 series, designed for board-to-wire power and signal interconnects.
Rated 8 A per circuit and 600 V, this header handles moderate power distribution — think a main DC rail or a multi-circuit power bus inside a control cabinet. The tin-plated solder tails (100.0 µin) are standard for through-hole soldering. The board guide feature aids alignment during assembly.
The 430451428 mates with a Micro-Fit 3.0 receptacle housing (such as the 43025 series) using the standard crimp terminals. The locking ramp on the header engages with the receptacle latch — verify the receptacle part number matches your wire gauge and circuit count.
Yes, the 430451428 is ROHS3 compliant.
The 430451428 is rated 8 A per circuit at the operating temperature range of -40°C to 105°C. Derate current above the stated temperature per the derating curve in the product drawing.
