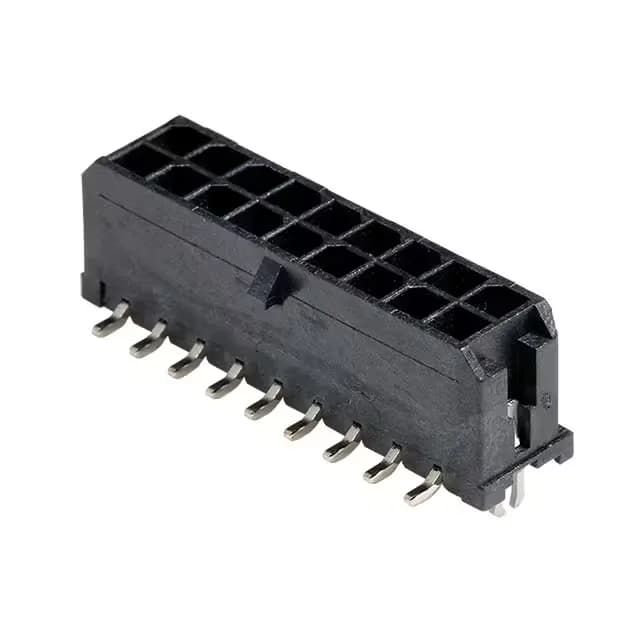

The Molex 430451816 is the 18-circuit dual-row member of the Micro-Fit 3.0 43045 header series — a board-to-cable power header rated 8 A per circuit at up to 600 V, with gold-plated mating contacts and tin solder tails for SMT board assembly. The four-wall shroud and locking ramp keep the mated pair seated under vibration, and the board-lock feature adds retention to the PCB land pattern independent of the connector's mechanical latching to the wire-side housing.
Key ratings and what they mean
Eight amps per circuit at 600 V is the primary rating for this 18-position dual-row header — the 8 A limit defines its power-carrying capacity, and the voltage ceiling handles standard industrial distribution levels without derating the connector itself. The split plating is standard for the Micro-Fit 3.0 series: 15.0 µin (0.38 µm) gold on the mating face gives the cycle life and contact reliability at the interface, while 100.0 µin (2.54 µm) tin on the solder tails provides solder-wetting robustness during SMT reflow and long-term oxidation resistance at the board joint. Operating range is -40°C to 105°C with UL94 V-0 housing material — suited for automotive engine-bay and industrial enclosure environments where thermal cycling and flame-retardancy are both required. The board-lock pegs anchor the header to the PCB before soldering; the locking ramp on the housing side engages the matching receptacle latch after mate. Both features matter in high-vibration applications — one keeps the header on the board, the other keeps the wire-side mated pair from unseating under shock.
