What this connector is

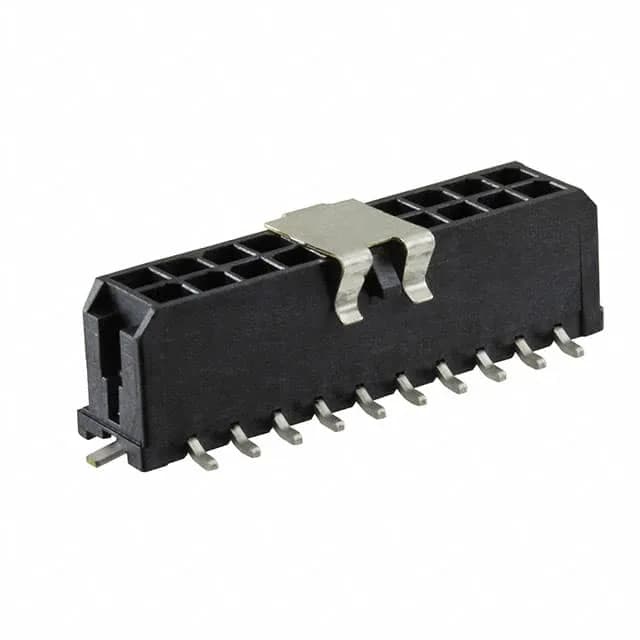

The Molex 430452019 is the 20-circuit member of the Micro-Fit 3.0 43045 family — a dual-row, board-to-cable SMT header with a 3.00mm pitch and 4-wall shroud. The locking ramp on the header body mates with the matching Micro-Fit 3.0 receptacle housing and keeps the pair secured under vibration and thermal cycling. Rated 8A per circuit at up to 600V, with 15.0µin (0.38µm) gold on the mating face and 100.0µin (2.54µm) tin on the solder tail.
The 8A rating and what the plating split means
Where this class of connector is used
Micro-Fit 3.0 headers are a standard mid-power board-to-wire interconnect in automotive harness assemblies, industrial automation control panels, and medical equipment power-distribution boards. The 600V rating handles the higher-voltage rails in those systems; the 4-wall shroud and locking ramp protect against accidental unmating in environments with cable movement or thermal shock cycling. Operating range is -40°C to 105°C with UL94 V-0 housing material, so the thermal envelope covers both engine-adjacent automotive zones and enclosed industrial enclosures.
