What This Connector Is

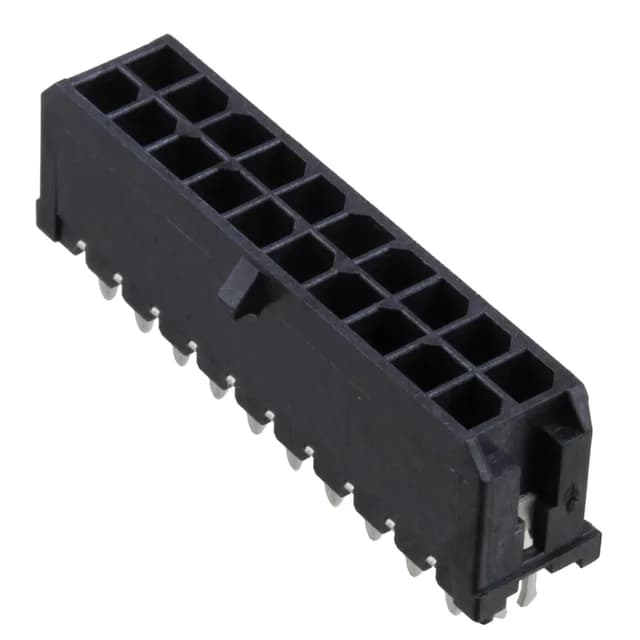

The Molex 430452026 is the 20-position dual-row member of the Micro-Fit 3.0 43045 series — a 3.00mm pitch board-to-cable header with gold-plated mating contacts and tin solder tails, rated 8A per circuit at up to 600V. The 4-wall shroud, locking ramp, and board-lock features make it the mid-to-high-density power/signal header of choice in automotive harness, industrial automation, and medical equipment applications where vibration resistance and positive mating retention are non-negotiable.
What the Key Ratings Mean
The 8A per circuit at 3.00mm pitch puts this above typical ribbon-style headers — the Micro-Fit 3.0 geometry handles the current density without derating to 3–4A, so a 20-circuit board running 8A per pin is a legitimate design case, not a spec stretch. The mixed plating is deliberate: 30µin gold on the mating interface gives low contact resistance and durability across the lifecycle, while 100µin tin on the solder tails provides solder-wetability and resistance to oxidation in the through-hole. The 600V rating covers industrial three-phase bus and higher-voltage signal runs that would exceed the rating of a typical 250V header series. The 4-wall shroud with locking ramp and board-lock features address the same problem from two angles: the shroud prevents mis-mating and protects pins during handling, while the board lock anchors the header to the PCB before wave or selective solder reflow so the unit does not lift or float. The -40 to 105°C operating range covers refrigerated equipment and industrial enclosures without a special high-temp variant.
