Molex 430452421

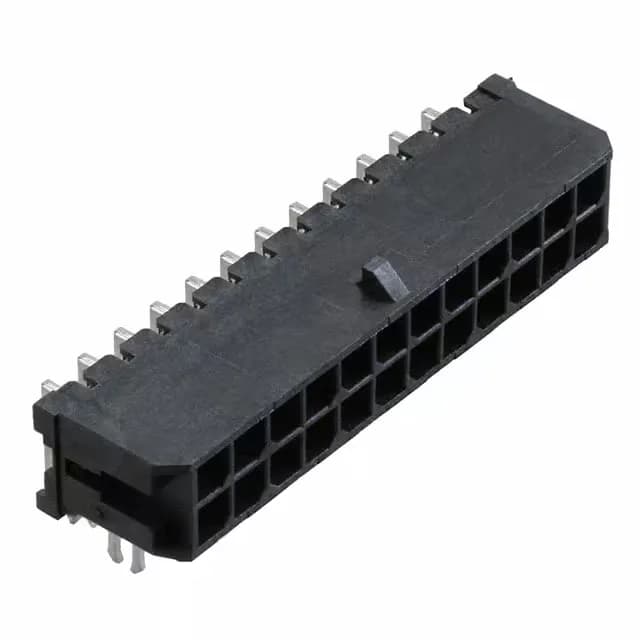

Molex Micro-Fit 3.0 430452421, 24 Pos R/A Header, 3mm Pitch

MPN430452421
Active

Molex Micro-Fit 3.0 43045 series, right-angle through-hole header, 24 circuits, 3.00 mm pitch, dual-row, tin-plated contacts rated 8 A per circuit at 600 V, locking ramp, fully shrouded, board-lock mount, UL94 V-0 LCP housing, -40 to 105 °C operating temperature.

$7.97Ref. price · indicative, final on quote
Molex 430452421 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-Fit 3.0 43045
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

430452421 key specifications
ParameterValue
SeriesMicro-Fit 3.0 43045
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600V
Current rating8A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

430452421 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions24
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Contact finish - matingTin
Contact finish thickness - mating60.0µin (1.52µm)

Product details

Right-Angle Power Header for Wire Harness Interconnects

The Molex 430452421 is a 24-circuit, dual-row, right-angle through-hole header from the Micro-Fit 3.0 43045 series. It connects a PCB to a wire harness, mating with the corresponding Micro-Fit 3.0 receptacle housing and crimp terminals. The 3.00 mm pitch and 0.118" row spacing define the board footprint, while the 8 A per circuit rating at 600 V suits it for moderate-power distribution in automotive, industrial, medical, and telecom equipment.

Key Features for Assembly and Reliability

Frequently asked questions

What is the pitch of Molex 430452421?

The mating pitch is 0.118" (3.00 mm), with the same 0.118" row spacing between the two rows of pins.

What is the current rating of 430452421?

Each contact is rated 8 A at 600 V. The tin plating on the mating surface means this rating applies for moderate-cycle applications typical of harness interconnects.

Is 430452421 RoHS compliant?

Yes, the part is ROHS3 compliant.
