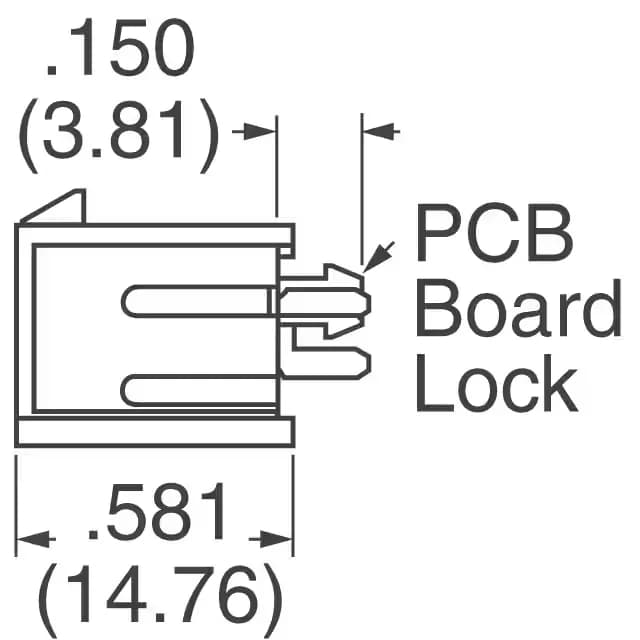

Molex Sabre 43160 series Header, Male Blades, 431600104, 4 circuits, 1 row, 0.295" (7.50mm) pitch, 18 A, 600 V, Through Hole, Solder, Tin contacts, Black, Tray.
| Parameter | Value |
|---|---|
| Series | Sabre 43160 |
| Mounting | Through Hole |
| Connector type | Header, Male Blades |
| Fastening type | Locking Ramp |
| Voltage rating | 600 V |
| Current rating | 18 A |
| Operating temperature | -40°C ~ 75°C |
| Color | Black |
| Contact material | Brass |
| Material - insulation | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Pitch | 0.295\" (7.50mm) |
| Package | Tray |
| Termination | Solder |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 4 |
| Contact finish thickness | 60.0µin (1.52µm) |
The Molex 431600104 is a 4-position, single-row header from the Sabre 43160 series, designed for power delivery in wire-to-board applications. It carries male blade contacts rated 18 A per circuit at 600 V, with a 7.50 mm pitch that provides enough creepage for the voltage rating without forcing an oversized board footprint.
No. The 431600104 has 4 positions; the 431600105 has 5. The pitch is identical, but the circuit count does not match — the panel wiring would need to be rewired for the different position count.
