Molex 431601104

Molex Sabre 431601104 Header, 4-Pos, 7.50mm, R/A, 18 A

MPN431601104
Active

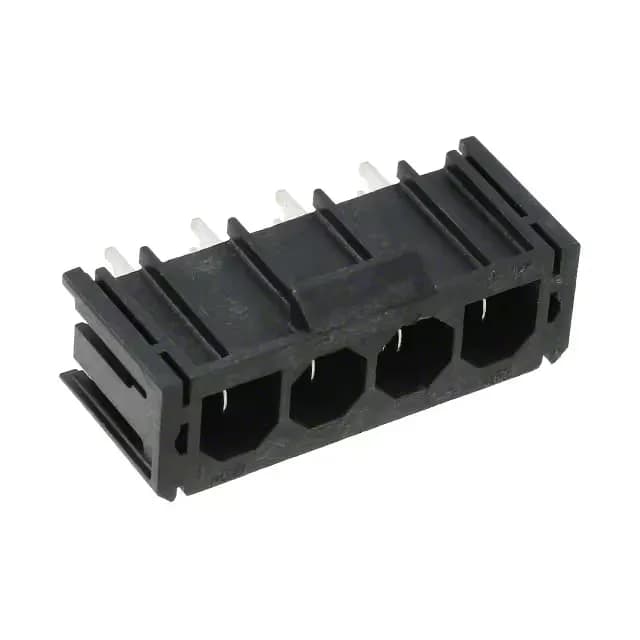

Molex Sabre 43160 header, 431601104, 4 positions, 0.295" (7.50mm) pitch, 1 row, right-angle through-hole, male blade, tin-plated brass, 18 A, 600 V, locking ramp, black PA46, bulk.

$2.45Ref. price · indicative, final on quote
Molex 431601104 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSabre 43160
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

431601104 specifications
ParameterValue
SeriesSabre 43160
MountingThrough Hole, Right Angle
Connector typeHeader, Male Blades
Fastening typeLocking Ramp
Voltage rating600 V
Current rating18 A
Operating temperature-40°C ~ 75°C
ColorBlack
Contact materialBrass
Material - insulationPolyamide (PA46), Nylon 4/6, Glass Filled
Pitch0.295\" (7.50mm)
PackageBulk
TerminationSolder
Contact finishTin
Rows1
Positions4
Contact finish thickness60.0µin (1.52µm)

Product details

Power header for board-level distribution

The 431601104 is the 4-position member of the Sabre 43160 right-angle header family. If the BOM calls for 5 circuits, the 431600105 offers the same 7.50 mm pitch, 18 A rating, 600 V rating, tin plating, and locking ramp — the only difference is the position count. For a 6-circuit requirement, the 431600106 (straight) or 431603106 (right-angle with board lock) are direct alternatives. No rewiring or panel modification is needed beyond matching the circuit count.

Frequently asked questions

Where can I buy the 431601104 and get a price?

The 431601104 is available to order against an RFQ. Availability and current pricing are confirmed at quote time through our sourcing desk — no stock-holding claim is made here.

Will the 431601104 drop into a panel designed for the 431600105?

No — the 431601104 has 4 positions while the 431600105 has 5 positions. The pitch, current rating, voltage, and mounting are identical, so the only difference is the circuit count. The panel would need to accommodate the different position count.
