The 431601105 shares its 7.50 mm pitch, 18 A rating, 600 V rating, tin contacts, and locking ramp with the vertical through-hole sibling 431600105. The only difference is mounting orientation: the 431601105 is right-angle, while the 431600105 is straight. The 6-position right-angle variant 431603106 adds a board lock for extra SMT retention during reflow — useful if vibration or shear force is a concern, but the 5-position 431601105 lacks that feature.

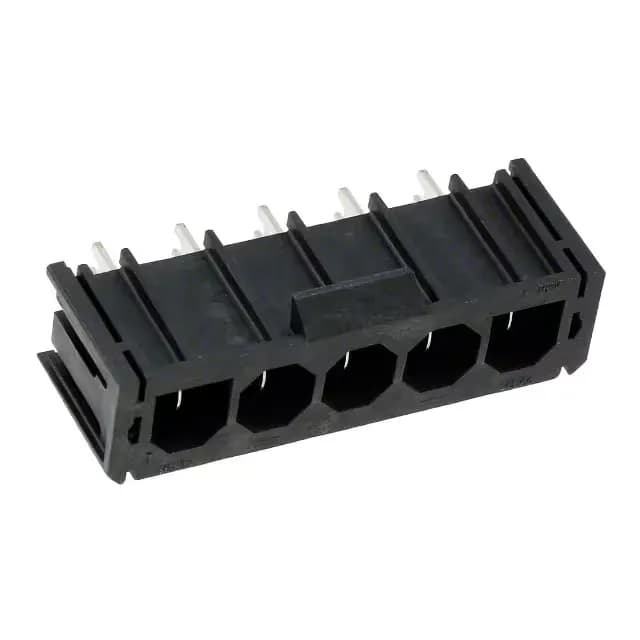

Molex Sabre 431601105 Header, 5 Pos, 7.50mm, 18 A, 600 V, R/A
MPN431601105
Active
Molex Sabre 43160 Header, Male Blades, 5 Positions, 7.50mm Pitch, 18 A, 600 V, Tin Contacts, Through Hole, Right Angle, Black, Bulk.
$2.8Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSabre 43160
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Sabre 43160 |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Male Blades |
| Fastening type | Locking Ramp |
| Voltage rating | 600 V |
| Current rating | 18 A |
| Operating temperature | -40°C ~ 75°C |
| Color | Black |
| Contact material | Brass |
| Material - insulation | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Pitch | 0.295\" (7.50mm) |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 5 |
| Contact finish thickness | 60.0µin (1.52µm) |
Product details
Frequently asked questions
Will 431601105 drop into a panel specified around 431600105?
No — the 431601105 is right-angle through-hole, while the 431600105 is vertical through-hole. They share the same pitch, current, voltage, and plating, but the mounting orientation changes the cable exit direction and board footprint.
Where can I buy the 431601105?
The 431601105 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
