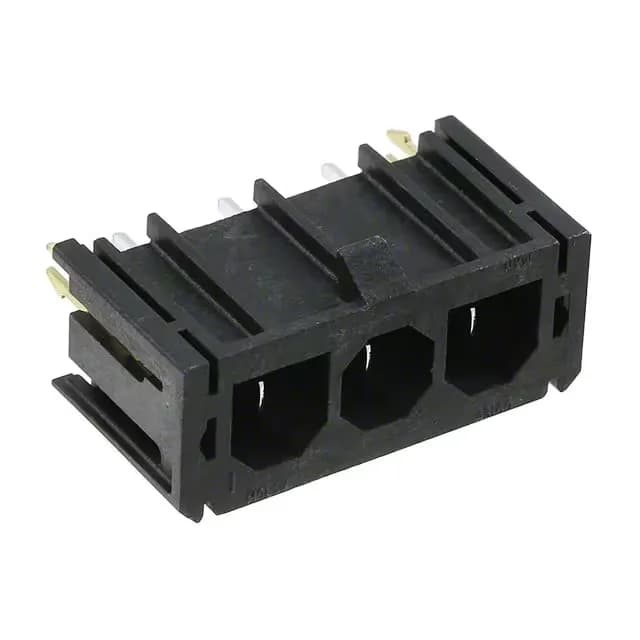

Molex Sabre 43160 series, 3-position 7.50mm pitch male header, tin-plated brass contacts, 18 A per circuit at 600 V, through-hole solder termination with board lock and locking ramp, black glass-filled PA46 nylon insulator, operating -40°C to 75°C.
| Parameter | Value |
|---|---|
| Series | Sabre 43160 |
| Voltage | 600 V |
| Current | 18 A |
| Mounting | Through Hole |
| Connector size | Header, Male Blades |
| Color | Black |
| Contact material | Brass |
| Pitch | 0.295" (7.50 mm) |
| Package | Tray |
| Features | Board Lock |
| Positions | 3 |
| Termination | Solder |
| Contact plating | Tin |
| Locking (Fastening) | Locking Ramp |
| Rows | 1 |
Expert opinion by FFC Fiona · FFC / FPC Flat-Flex Connector Design Engineer
The Molex 431602103 is the 3-circuit member of the Sabre 43160 series, a through-hole power header rated 18 A per circuit at 600 V with tin-plated brass contacts and a black glass-filled PA46 nylon insulator. At 7.50 mm pitch, the Sabre series sits well above typical signal-header densities — the spacing directly governs the board footprint and routing channel width, and the 18 A current rating reflects the contact cross-section the pitch enables.
The listing confirms ROHS3 Compliant status. No UL, VDE, or IEC rating appears in the available spec data — verify against the full datasheet if safety certification is required for the end application.
