Molex 431603102

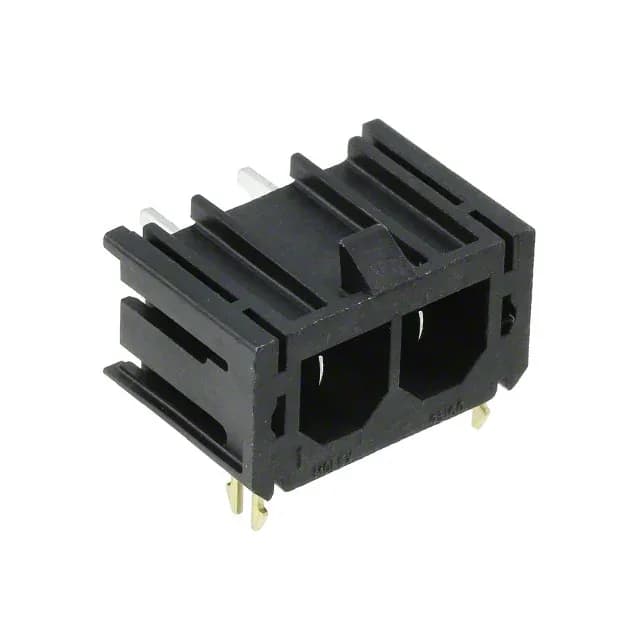

Molex Sabre 431603102 Header, 2 Pos, 7.50mm, 18 A, R/A

MPN431603102
Active

Molex Sabre 43160 431603102, Header Male Blades, 2 Positions, 7.50mm Pitch, Through Hole Right Angle, Solder, Tin Contacts, 18 A, 600 V, Board Lock, Black PA46, Bulk.

$1.92Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSabre 43160
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

431603102 specifications
ParameterValue
SeriesSabre 43160
MountingThrough Hole, Right Angle
Connector typeHeader, Male Blades
Fastening typeLocking Ramp
Voltage rating600 V
Current rating18 A
Operating temperature-40°C ~ 75°C
ColorBlack
Contact materialBrass
Material - insulationPolyamide (PA46), Nylon 4/6, Glass Filled
Pitch0.295\" (7.50mm)
PackageBulk
FeaturesBoard Lock
TerminationSolder
Contact finishTin
Rows1
Positions2
Contact finish thickness60.0µin (1.52µm)

Product details

The Molex 431603102 is the 2-position member of the Sabre 43160 series — a through-hole, right-angle header with male blade contacts on 7.50 mm pitch. It is designed for wire-to-board power interconnects where each circuit carries 18 A at up to 600 V.

The 431603102 is the 2-position version of the same right-angle, tin-plated header. The 6-position 431603106 shares the same 7.50 mm pitch, 18 A per circuit rating, 600 V rating, board lock, and locking ramp — the only difference is the position count. No rewiring or footprint change beyond the position count.

Frequently asked questions

Where can I buy 431603102 and how do I get a price?

The 431603102 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm quote.

Will 431603102 drop into a panel specified around 431603106 without rewiring?

No — the 431603102 is a 2-position header, while the 431603106 is 6-position. The pitch, current rating, voltage, and locking ramp are identical, but the position count is different, so the PCB footprint and harness circuit count must match.

What compliance documentation does Molex provide for 431603102?

The 431603102 is ROHS3 compliant. No UL, CSA, or IEC approvals are listed in the available documentation.
