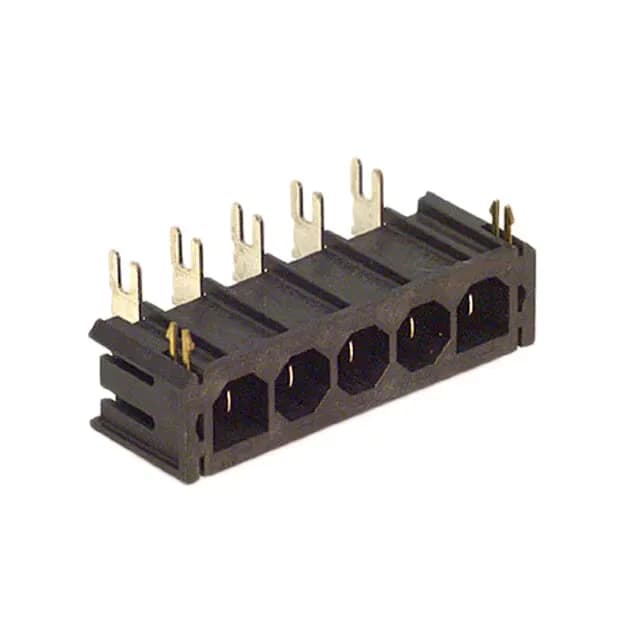

Molex Sabre 43160 header, 431603105, 5 positions, single row, 7.50 mm pitch, right-angle through-hole, tin-plated brass contacts, 18 A per circuit, 600 V, board lock, locking ramp, black PA46 insulator, tray.
| Parameter | Value |
|---|---|
| Series | Sabre 43160 |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Male Blades |
| Fastening type | Locking Ramp |
| Voltage rating | 600 V |
| Current rating | 18 A |
| Operating temperature | -40°C ~ 75°C |
| Color | Black |
| Contact material | Brass |
| Material - insulation | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Pitch | 0.295\" (7.50mm) |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 5 |
| Contact finish thickness | 60.0µin (1.52µm) |
The Molex 431603105 is a 5-position, single-row header from the Sabre 43160 series, designed for wire-to-board power applications. It uses a 7.50 mm pitch, right-angle through-hole mounting, and tin-plated brass contacts rated 18 A per circuit at 600 V. The locking ramp and board lock provide secure retention in high-vibration environments such as industrial equipment and power distribution assemblies.
The pitch is 0.295" (7.50 mm). This is a standard power connector pitch that provides adequate creepage for the 600 V rating.
The 431603105 has 5 positions; the 431603106 has 6 positions. All other specs — pitch, orientation, plating, board lock, packaging — are identical. Choose based on your circuit count.
The 431603105 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for your target quantity.
