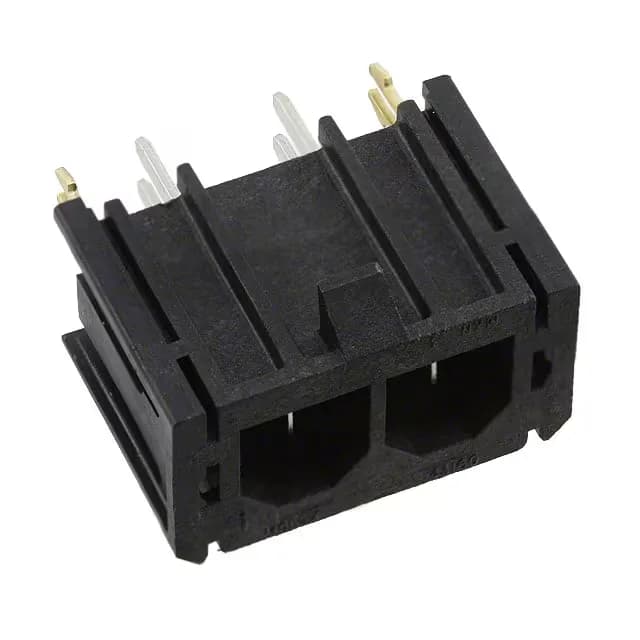

Molex Sabre 43160 series male blade header, 2 positions, single row, 7.50mm pitch, tin-plated brass contacts rated 18 A per circuit at 600 V, locking ramp, through-hole with board lock, black PA46/nylon housing, -40°C to 75°C operating range.
| Parameter | Value |
|---|---|
| Series | Sabre 43160 |
| Voltage | 600 V |
| Current | 18 A |
| Mounting | Through Hole |
| Connector size | Header, Male Blades |
| Color | Black |
| Contact material | Brass |
| Pitch | 0.295" (7.50 mm) |
| Package | Tray |
| Features | Board Lock |
| Positions | 2 |
| Termination | Solder |
| Contact plating | Tin |
| Locking (Fastening) | Locking Ramp |
| Rows | 1 |
Expert opinion by Harness-Builder Hugo · Wire Harness Builder
The 431604302: The board-lock feature differentiates this from a plain press-fit header: the lock tabs engage the PCB during insertion and resist withdrawal before the solder joint is fully cured, which is useful on production lines where wave-solder profiles can temporarily relieve a friction-fit joint. The PA46/nylon 4/6 glass-filled housing supports the -40°C to 75°C operating window and gives the header its black color. Rated for tray packaging.
The part is listed ROHS3 Compliant. No UL, IEC, or REACH entry appears in the current record.
The housing color is Black.
