Molex 431604305

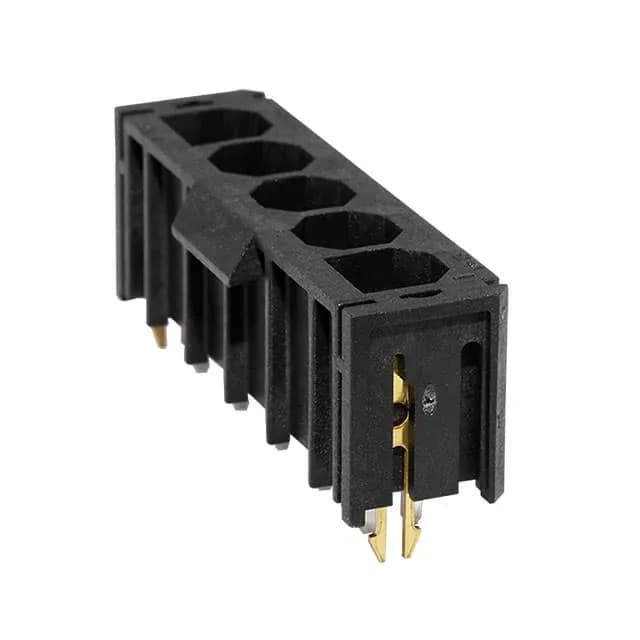

Molex Sabre 43160 431604305 Header, 5 Pos, 7.50mm, 18 A

MPN431604305
Active

Molex Sabre 43160 Series Header, Male Blades, 5 Positions, 0.295" (7.50mm) Pitch, 1 Row, Through Hole, Solder Termination, Tin Contacts, 18 A, 600 V, Black, Board Lock, Bulk.

$2.82Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSabre 43160
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

431604305 specifications
ParameterValue
SeriesSabre 43160
MountingThrough Hole
Connector typeHeader, Male Blades
Fastening typeLocking Ramp
Voltage rating600 V
Current rating18 A
Operating temperature-40°C ~ 75°C
ColorBlack
Contact materialBrass
Material - insulationPolyamide (PA46), Nylon 4/6, Glass Filled
Pitch0.295\" (7.50mm)
PackageBulk
FeaturesBoard Lock
TerminationSolder
Contact finishTin
Rows1
Positions5
Contact finish thickness60.0µin (1.52µm)

Product details

Sabre 43160 5-Position Power Header with Board Lock

The 75°C upper operating limit is the derating ceiling for the 18 A rating; above that, current must be reduced per the manufacturer's derating curve.

The 431604305 is the 5-position member with a board lock. Against the 431600105, which is also a 5-position through-hole header at the same 7.50 mm pitch, current, and voltage, the only difference is the board lock — the 431600105 lacks it. If your assembly sees vibration or you want the header locked to the board during rework, the 431604305 is the pick. Against the 431600106, the difference is position count: 5 positions vs 6 positions, same pitch and ratings, no board lock on the 431600106. The 431603106 is a 6-position right-angle variant with a board lock — different orientation for a board-edge harness exit.

Frequently asked questions

What is the mating connector for 431604305?

The 431604305 mates with the matching Sabre 43160 receptacle housing that accepts the crimp terminals. The locking ramp on the header engages the receptacle's latch for retention.

Is Molex 431604305 RoHS compliant?

Yes, the 431604305 is RoHS3 compliant per the manufacturer's listing.

What is the pitch of Molex 431604305?

The pitch is 0.295" (7.50 mm), which is the centre-to-centre spacing between the male blades.

What is the difference between 431604305 and 431600105?

Both are 5-position Sabre 43160 headers at 7.50 mm pitch, 18 A, 600 V, with tin contacts. The 431604305 includes a board lock; the 431600105 does not.
