Molex 431605303

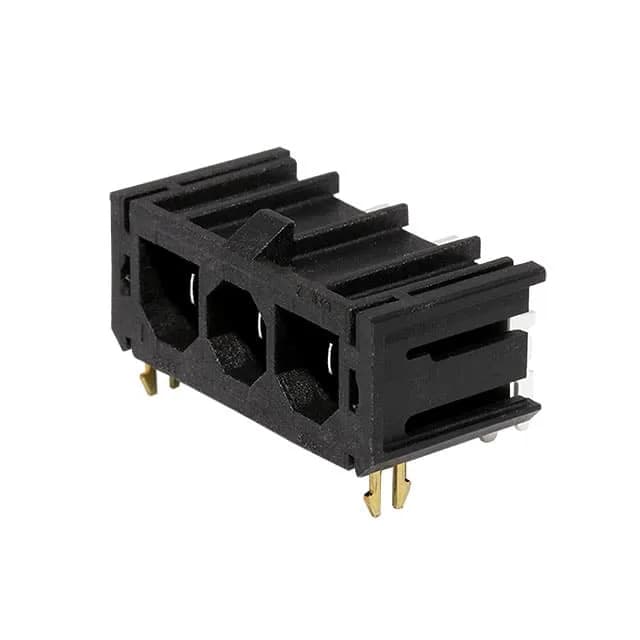

Molex Sabre 431605303 Header, 3 Pos 7.50mm R/A, 18 A 600 V

MPN431605303
Active

Molex Sabre 43160 series header, 431605303, 3 positions, 0.295" (7.50mm) pitch, single row, right-angle through-hole, tin-plated brass contacts, 18 A at 600 V, board lock, locking ramp, black, bulk.

$2.46Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSabre 43160
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

431605303 specifications
ParameterValue
SeriesSabre 43160
MountingThrough Hole, Right Angle
Connector typeHeader, Male Blades
Fastening typeLocking Ramp
Voltage rating600 V
Current rating18 A
Operating temperature-40°C ~ 75°C
ColorBlack
Contact materialBrass
Material - insulationPolyamide (PA46), Nylon 4/6, Glass Filled
Pitch0.295\" (7.50mm)
PackageBulk
FeaturesBoard Lock
TerminationSolder
Contact finishTin
Rows1
Positions3
Contact finish thickness60.0µin (1.52µm)

Product details

The Molex 431605303 is the 3-position member of the Sabre 43160 series — a single-row, right-angle through-hole header with male power blades. It carries a 18 A per-circuit rating at 600 V, which puts it in the power interconnect class rather than signal duty.

Derate above 75 °C per the product drawing; the PA46 housing is glass-filled for dimensional stability under that load.

The 431603106 is the 6-position version at the same 7.50 mm pitch, same 18 A and 600 V rating, same right-angle orientation and board lock. Everything else — footprint pitch, current headroom, locking ramp, and tin plating thickness — is identical, so the board layout scales linearly with position count.

Frequently asked questions

Will the 431605303 mate with the same receptacle as the 6-position 431603106?

Yes — both use the same Sabre 43160 series receptacle housing and terminal system. The 3-position and 6-position headers share the same pitch, current rating, and locking ramp interface, so the mating half is identical in design; only the cavity count differs.

Where can I buy the 431605303?

The 431605303 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here.
