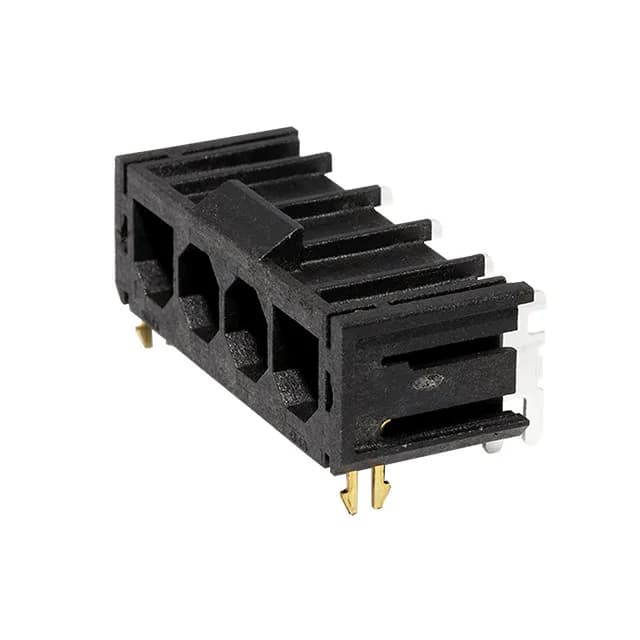

Molex Sabre 43160, 4-position single-row right-angle male header, 0.295" (7.50mm) pitch, rated 18 A per circuit at 600 V, tin-plated (60 µin), through-hole solder termination with board lock and locking ramp, black glass-filled nylon insulation, -40°C to 75°C operating range.
| Parameter | Value |
|---|---|
| Series | Sabre 43160 |
| Voltage | 600 V |
| Current | 18 A |
| Mounting | Right Angle, Through Hole |
| Connector size | Header, Male Blades |
| Color | Black |
| Contact material | Brass |
| Pitch | 0.295" (7.50 mm) |
| Package | Bulk |
| Features | Board Lock |
| Positions | 4 |
| Termination | Solder |
| Contact plating | Tin |
| Locking (Fastening) | Locking Ramp |
| Rows | 1 |
Expert opinion by Obsolete-Hunter Olga · Obsolete / EOL Connector Cross-Reference Broker
The Molex 431605304 is the 4-position member of the Sabre 43160 series — a single-row, right-angle male blade header rated 18 A per circuit at up to 600 V. The 0.295-inch (7.50 mm) pitch is well above signal-header densities, placing this firmly in the power-distribution class of board-level interconnects. Tin-plated contacts at 60 µin (1.52 µm) thickness, a locking ramp for vibration-rated panel mating, and board-lock legs for through-hole retention complete the profile.
18 A per circuit at 0.295-inch (7.50 mm) pitch is a power-class rating well above signal-header current density — the 431605304 is sized for the power bus itself, not for low-level signal distribution, and the 600 V rating covers AC mains bus segments in industrial equipment.
Black — the insulation body is listed as Black in the connector specifications.
