Molex 431606304

Molex Sabre 431606304 Header, 4 Pos 7.50mm, 18 A

MPN431606304
Active

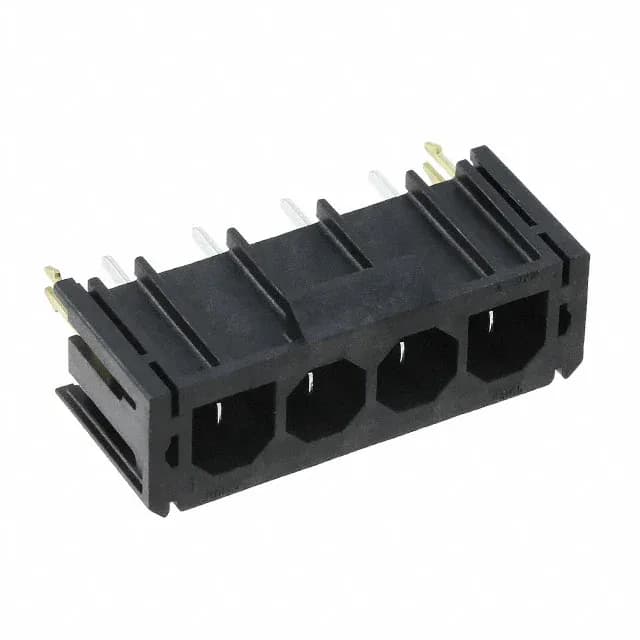

Molex Sabre 43160 header, 431606304, 4 positions single-row, 7.50mm pitch, through-hole solder, tin-plated brass contacts rated 18 A at 600 V, black PA46 housing with board lock and locking ramp.

$2.65Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSabre 43160
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

431606304 specifications
ParameterValue
SeriesSabre 43160
MountingThrough Hole
Connector typeHeader, Male Blades
Fastening typeLocking Ramp
Voltage rating600 V
Current rating18 A
Operating temperature-40°C ~ 75°C
ColorBlack
Contact materialBrass
Material - insulationPolyamide (PA46), Nylon 4/6, Glass Filled
Pitch0.295\" (7.50mm)
PackageBulk
FeaturesBoard Lock
TerminationSolder
Contact finishTin
Rows1
Positions4
Contact finish thickness60.0µin (1.52µm)

Product details

The tin-plated brass contacts are rated 18 A per circuit, which means each blade carries bus-level current for a main DC rail or a power distribution point inside an enclosure. The black PA46 housing carries a board lock for through-hole solder retention and a locking ramp for positive mating with the Sabre receptacle.

The 431606304 shares the same 7.50 mm pitch, 18 A current rating, 600 V rating, tin plating, and board-lock feature as the 5-position 431600105. The only decision-relevant difference is the position count: 4 positions here versus 5 on the 431600105.

Frequently asked questions

What is the pitch of the 431606304?

The pitch is 0.295" (7.50 mm), which provides adequate creepage for the 600 V rating.

How do I get current pricing and availability for the 431606304?

The 431606304 is sourced and quoted to order against an RFQ. Availability and current pricing are confirmed at quote time through independent distribution.
