Molex 431607302

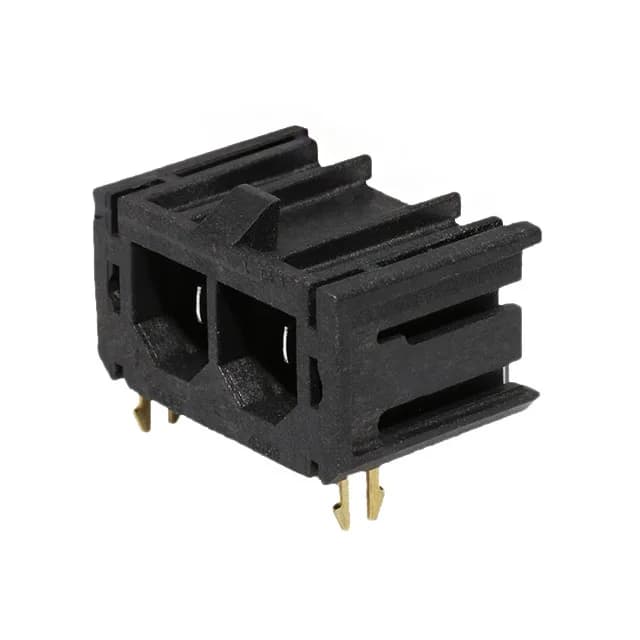

Molex Sabre 431607302 Header, 2 Pos, 7.50mm, 18 A, R/A

MPN431607302
Active

Molex Sabre 43160 Series Header, Male Blades, 431607302, 2 Positions, 7.50mm Pitch, 1 Row, Through Hole, Right Angle, Solder Termination, Tin Contacts, 18 A, 600 V, Board Lock, Locking Ramp, Black, Tray.

$1.92Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSabre 43160
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

431607302 specifications
ParameterValue
SeriesSabre 43160
MountingThrough Hole, Right Angle
Connector typeHeader, Male Blades
Fastening typeLocking Ramp
Voltage rating600 V
Current rating18 A
Operating temperature-40°C ~ 75°C
ColorBlack
Contact materialBrass
Material - insulationPolyamide (PA46), Nylon 4/6, Glass Filled
Pitch0.295\" (7.50mm)
PackageTray
FeaturesBoard Lock
TerminationSolder
Contact finishTin
Rows1
Positions2
Contact finish thickness60.0µin (1.52µm)

Product details

The Molex 431607302 is the 2-position member of the Sabre 43160 series — a right-angle through-hole header with male blades on a 7.50 mm pitch. It carries 18 A per circuit at 600 V, making it a compact power interconnect for board-to-wire applications in industrial control cabinets, power distribution units, and similar equipment where the board edge needs a locked, high-current connection.

If your application calls for frequent reconnection, a gold-plated sibling in the series would hold up better. Operating range of -40°C to 75°C — the upper limit is fine for indoor enclosures and most industrial cabinets, but it's a bit low for under-hood automotive or high-temp process zones. The PA46 insulation handles the 75°C ceiling without creep.

Against the 431603106 (6-position, same 7.50 mm pitch, same 18 A and 600 V ratings), the 431607302 is simply a 2-position cut of the same blade design. The position count is the only decision-relevant difference — the pitch, current, voltage, plating, locking ramp, and board lock are identical. If your BOM calls for 2 positions, this is the exact fit; the 6-position version shares the same footprint per circuit but occupies more board edge.

Frequently asked questions

Will the 431607302 drop into a panel that was specified around the 431603106 without rewiring?

No — the 431603106 is a 6-position header. The 431607302 has 2 positions at the same 7.50 mm pitch, so the board footprint per position is identical, but the overall connector length is shorter. It will not mechanically fit a panel cutout or PCB layout designed for 6 positions.

Where can I buy the 431607302 and how is it quoted?

The 431607302 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here.
