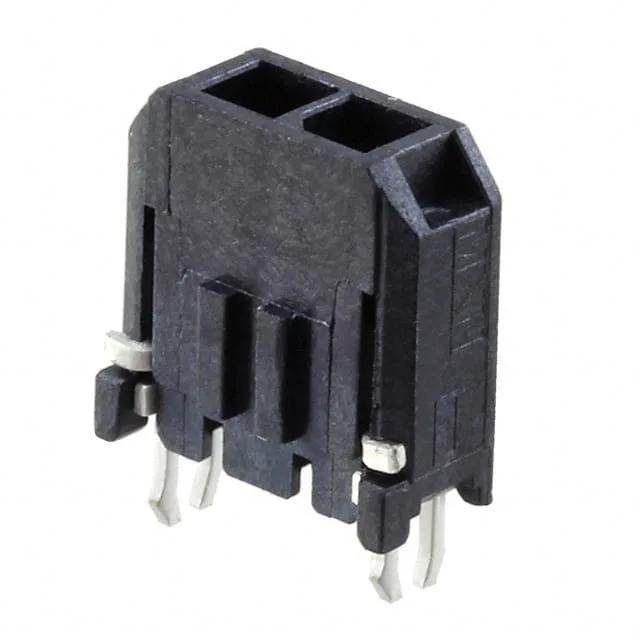

Molex 436500221
MPN436500221
Active
CONN HEADER SMD 2POS 3MM
$2.7Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-Fit 3.0 43650
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43650 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Mated stacking heights | 17.56mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
