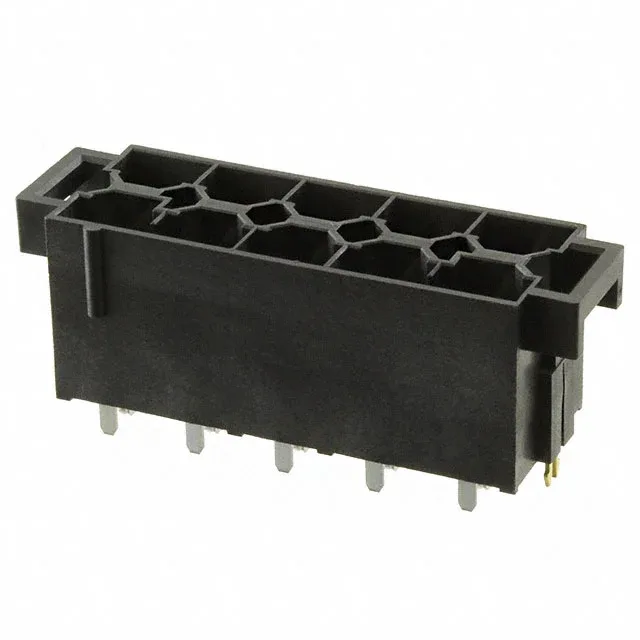

Molex 439151403
MPN439151403
Active
CONN HEADER VERT 10POS 10MM
$21.04Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini-Fit Sr 43915
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-Fit Sr 43915 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Copper Zirconium Alloy |
| Insulation color | Black |
| Insulation height | 0.827\" (21.00mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide, Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.394\" (10.00mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Silver |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
