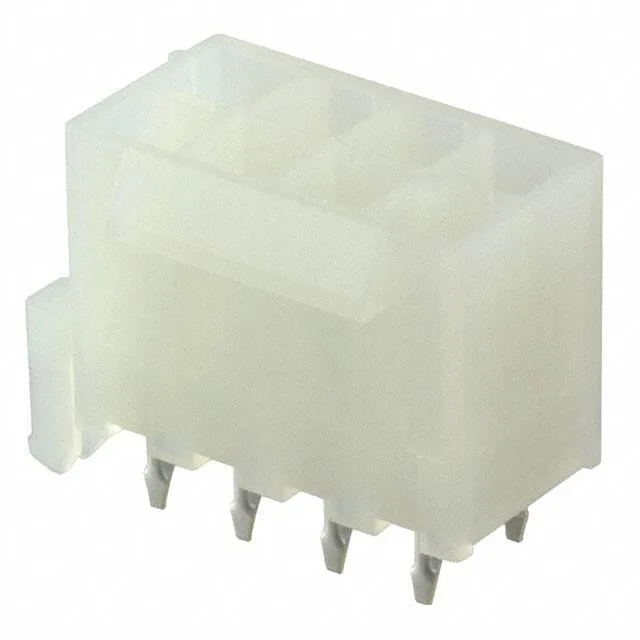

Molex 442060005
MPN442060005
Active
CONN HEADER VERT 8POS 4.2MM
$1.04Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini-Fit Jr 44206
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-Fit Jr 44206 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 8 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 35.0µin (0.90µm) |
| Contact finish thickness - mating | 35.4µin (0.90µm) |
