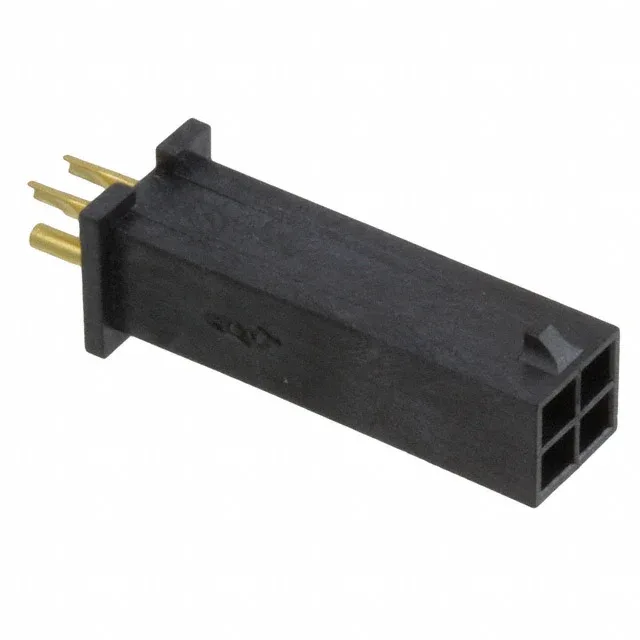

Molex 442420001
MPN442420001
Active
CONN HEADER VERT 4POS 3MM
$67.34Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-Fit 3.0 44242
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 44242 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Plug |
| Fastening type | Locking Ramp |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 1.100\" (27.94mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Medical, Military, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 4 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact length - post | 0.230\" (5.84mm) |
| Contact finish - mating | Gold |
