Molex 444412004

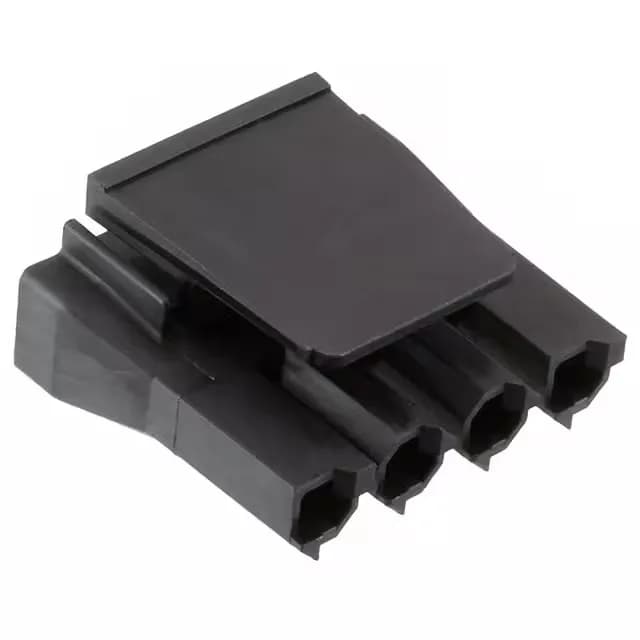

Molex Sabre 444412004 Receptacle Housing, 4 Pos, 7.50mm, 18 A

MPN444412004
Active

Molex Sabre 44441 444412004, Receptacle Housing, 4 Positions, 1 Row, 0.295" (7.50mm) Pitch, 18 A, Free Hanging, Latch Lock, Black PA/Nylon, Crimp Termination, Bulk.

$1.05Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSabre 44441
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

444412004 specifications
ParameterValue
SeriesSabre 44441
TypeFemale Blade Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Current rating18 A
Operating temperature-40°C ~ 75°C
ColorBlack
Material - insulationPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.295\" (7.50mm)
PackageBulk
Rows1
Stacking directionSide to Side
Contact terminationCrimp
Positions4

Product details

Sabre 44441 4-Position Power Receptacle Housing

It uses female blade socket contacts (sold separately) and a latch-lock fastening system for secure mating.

The 7.50 mm pitch is wide enough to give solid creepage for the 18 A rating without forcing a huge board footprint — you can route heavy traces between positions without tight clearance rules. The latch lock is a positive-retention feature — it clicks home and won't vibrate loose in a machine-tool or automotive underhood environment. If your environment pushes past 75°C, you'll need to check the derating curve for the 18 A rating at elevated temperature.

This is standard for modular power connectors, but it catches buyers who expect a pre-loaded housing. On-site, you can re-pin it with a basic crimp tool — the terminal is field-serviceable.

Frequently asked questions

What does 'Contacts Not Included' mean for the 444412004?

The housing ships empty — you must order the matching female blade socket crimp terminals separately. The contacts are field-serviceable with a standard crimp tool.

Will the 444412004 mate with the 444412005 5-position housing?

No — the 4-position and 5-position housings are different position counts. They share the same pitch and latch system, but the cavity count must match the mating half exactly.

Where can I buy the 444412004 and get current pricing?

The 444412004 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
