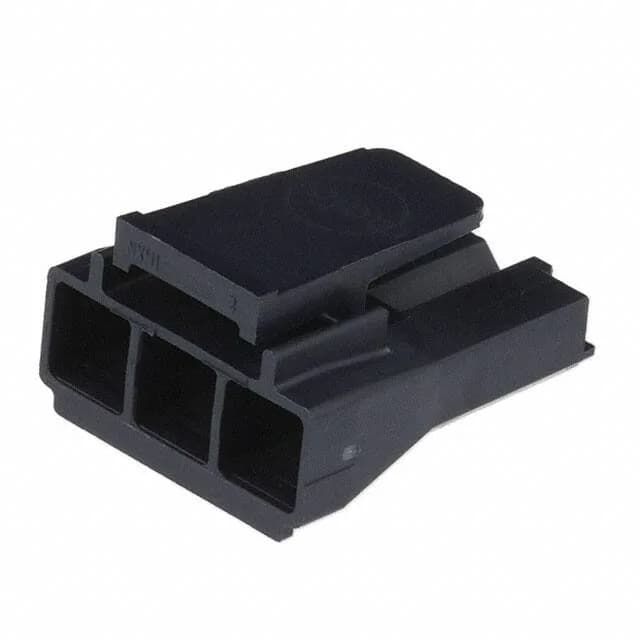

Molex Sabre 44441 series 444413003, 3-position receptacle housing, female blade socket, 0.295" (7.50 mm) pitch, free-hanging, latch lock, rated 10 A per circuit at 600 V, PA/Nylon black, -40°C to 75°C, contacts not included, bulk.
| Parameter | Value |
|---|---|
| Series | Sabre 44441 |
| Type | Female Blade Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Voltage rating | 600 V |
| Current rating | 10 A |
| Operating temperature | -40°C ~ 75°C |
| Color | Black |
| Material - insulation | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.295\" (7.50mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 3 |
The Molex 444413003 is a 3-position receptacle housing from the Sabre 44441 series, designed as a free-hanging (in-line) wire-to-board or wire-to-wire power interconnect. The black PA/Nylon body carries a glow-wire rating, which simplifies compliance for equipment inside enclosures requiring flame-rated components.
The 7.50 mm pitch provides creepage for the 600 V rating.
No — 444412002 is a 2-position housing; 444413003 is 3 positions. The pitch, latch lock, and terminal type are identical, so the same wire and terminal work, but the cavity count is different. The panel cutout or mating header must match the position count.
