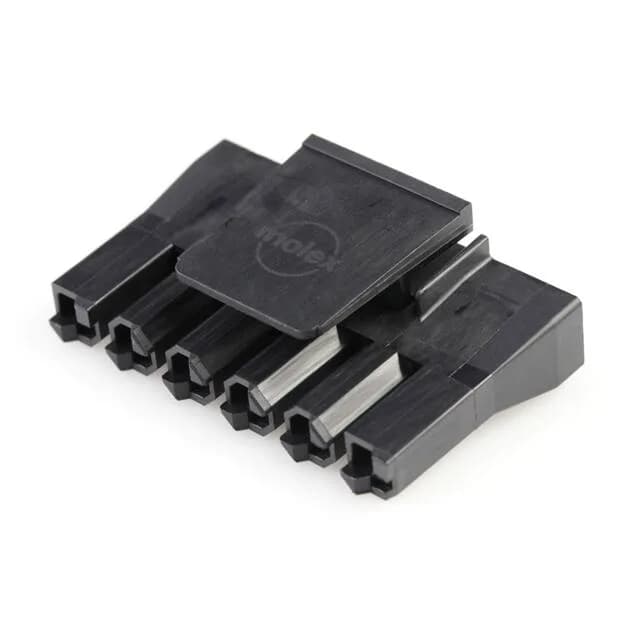

Molex Sabre 44441 series receptacle housing, 444413006, 6 positions single-row, 0.295" (7.50mm) pitch, 10 A per circuit at 600 V, crimp female blade socket termination, free hanging in-line mount with latch lock, black polyamide nylon, -40°C to 75°C operating range, bulk pack, contacts not included.
| Parameter | Value |
|---|---|
| Series | Sabre 44441 |
| Type | Female Blade Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Voltage rating | 600 V |
| Current rating | 10 A |
| Operating temperature | -40°C ~ 75°C |
| Color | Black |
| Material - insulation | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.295\" (7.50mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 6 |
For applications subject to continuous vibration, a secondary retention method — such as a cable tie through the housing features — is worth evaluating.
ROHS3 compliant. The housing material is polyamide (PA) nylon, rated for -40°C to 75°C operating range. No UL or CSA listing is stated in the available data; verify with the full product drawing if regulatory certification is required for your end-equipment.
No — contacts are not included. The housing accepts Sabre female blade socket crimp terminals, which must be ordered separately.
