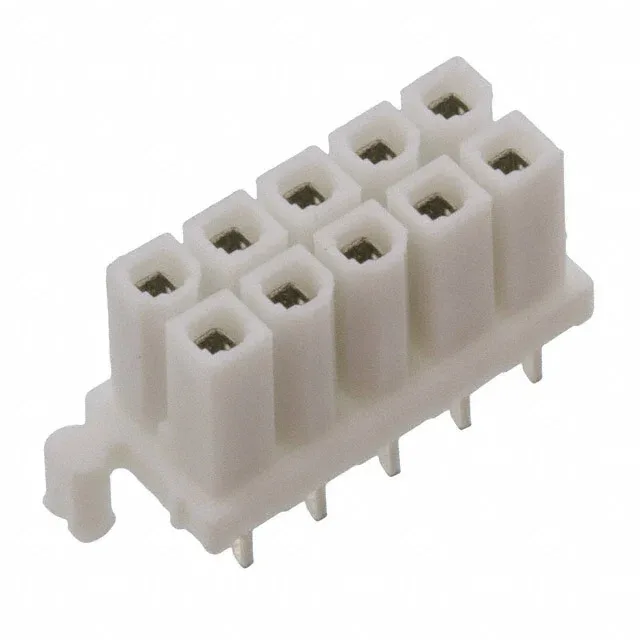

Molex 444751021
MPN444751021
Active
CONN RCPT 10POS 0.165 TIN PCB
$4.34Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini-Fit HCS 44475
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-Fit HCS 44475 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 600VAC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.446\" (11.33mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Mated stacking heights | 10.9mm, 15.24mm, 15.82mm |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 10 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
