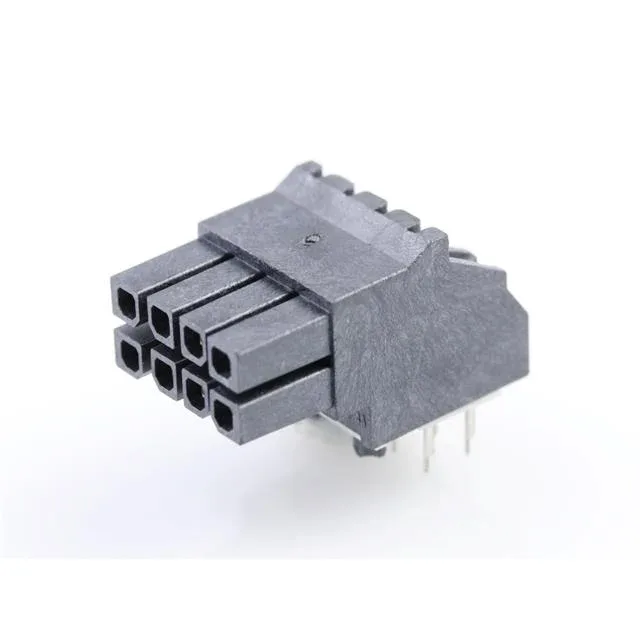

Molex Micro-Fit 3.0 BMI 44764 series, 8-position dual-row receptacle header, through-hole right-angle, 3.00 mm pitch, gold mating finish, 600 VAC/DC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 BMI 44764 |
| Gender | Female Socket |
| Mounting type | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 600VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze Alloy |
| Insulation color | Black |
| Insulation height | 0.410\" (10.41mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Box |
| Features | Blind Mating, Board Guide |
| Termination | Solder |
| Applications | General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.155\" (3.94mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 3.00µin (0.076µm) |
Rated 600 VAC/DC, the voltage ceiling suits general-purpose and telecommunications equipment where the connector sees line-level potentials.
The header includes blind-mating features and a board guide, which help align the connector during assembly in tight or blind locations — reduces the risk of pin stubbing or misalignment when the mating half is inserted.
No stock-holding claim is made — each order is sourced per request.
Yes, the 44764-0803 is ROHS3 Compliant per the lifecycle record.
