Board Fit and Mounting Reality

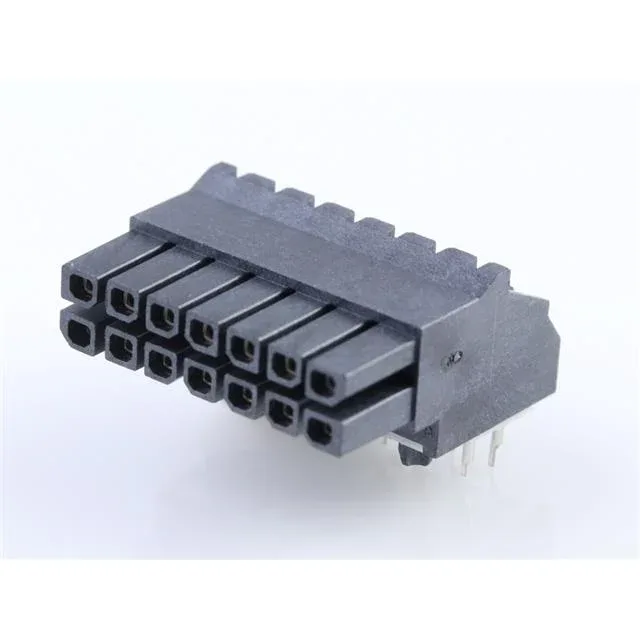

The 44764-1403: This is a 14-position, dual-row receptacle header on 3.00 mm pitch — the board footprint is 3 rows × 7 columns, with 0.118" (3.00 mm) row spacing.
Mating contacts are gold-plated (3.00 µinch / 0.076 µm) over phosphor bronze — the gold layer protects the base metal from oxidation during storage and repeated mate/unmate cycles. For applications subject to shock or continuous vibration, a locking ramp version from the same Micro-Fit 3.0 family would add a positive secondary hold.
Blind Mating and Assembly Aids
The header includes a board guide and is rated for blind mating — the guide features align the connector halves during insertion, reducing the risk of pin stubbing in tight enclosures or when the mating half is not visible to the assembler. This is a practical advantage for backplane or panel-mount applications where access is limited.
The connector is ROHS3 compliant.
