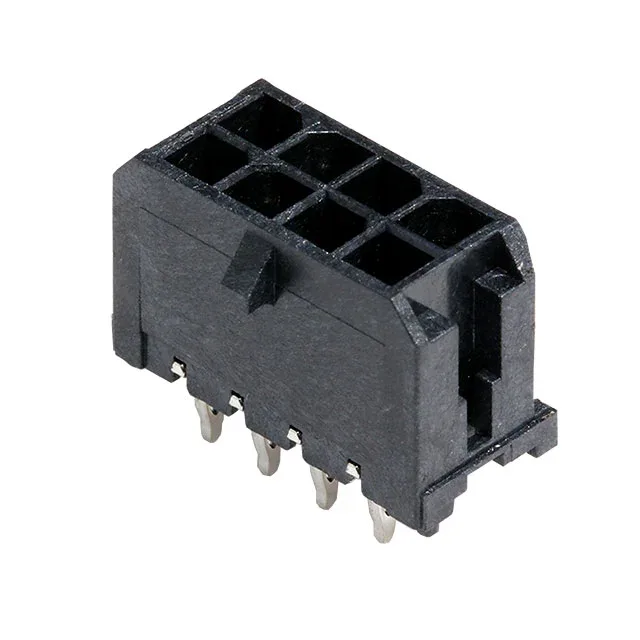

Molex 449140801
MPN449140801
Active
CONN HEADER VERT 8POS 3MM
$3.05Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-Fit 3.0 CPI 44914
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 CPI 44914 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Modified Tin/Brass Alloy |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | General Purpose, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 200.0µin (5.08µm) |
