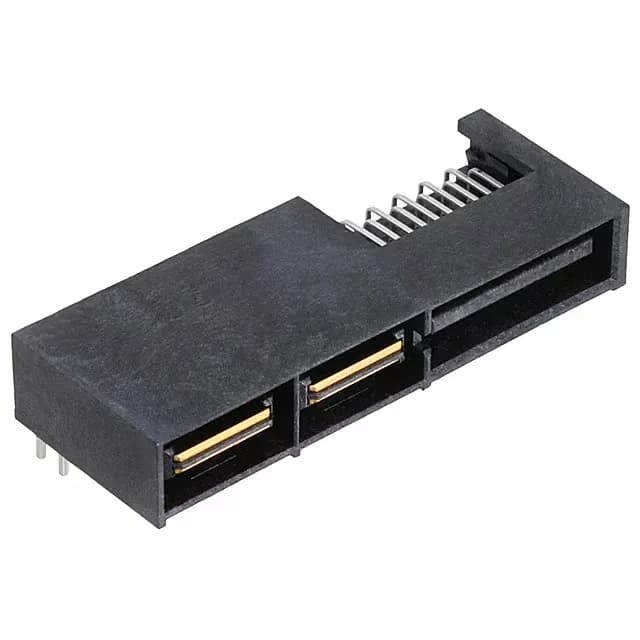

Molex EXTreme LPHPower 45985 series, 459854142, Plug Center Strip Contacts, 28 positions, 2 rows, 0.050" (1.27mm) pitch, 30A, 250V, Through Hole Right Angle, Solder, Gold 30.0µin, Black, Tray.
| Parameter | Value |
|---|---|
| Series | EXTreme LPHPower 45985 |
| Mounting | Through Hole, Right Angle |
| Connector type | Plug, Center Strip Contacts |
| Voltage rating | 250V |
| Current rating | 30A |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.050\" (1.27mm) |
| Package | Tray |
| Termination | Solder |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 28 |
| Contact layout, typical | 24 Signal, 4 Power |
| Contact finish thickness | 30.0µin (0.76µm) |
The 459854142: The housing is rated UL94 V-0 and the operating temperature spans -40°C to 105°C, so it fits inside an industrial enclosure or underhood automotive environment without derating the current at the top end. Rated 250 V, which is typical for a board-level power bus in a server PSU or battery interconnect. Solder termination, so the assembly goes through wave or selective solder; no press-fit tooling required.
The pitch is 0.050" (1.27 mm), a standard fine-pitch for mixed signal and power connectors.
The connector is RoHS3 compliant and the housing material carries a UL94 V-0 flammability rating. Full compliance documentation is available from the manufacturer.
