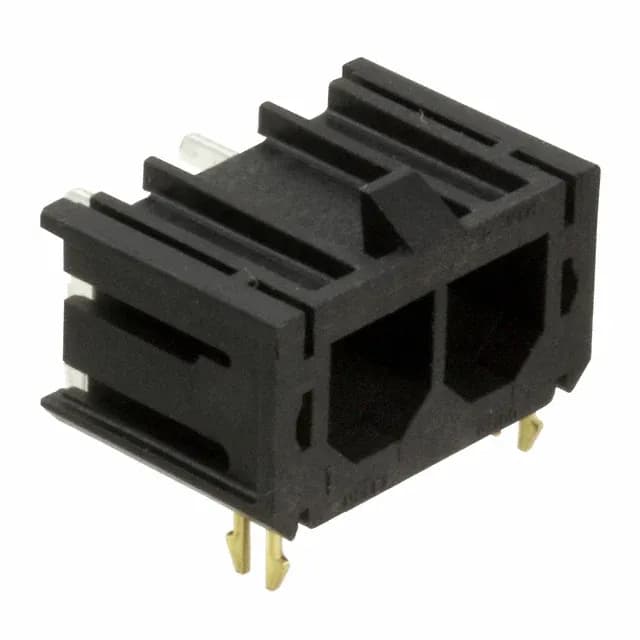

Molex Sabre 46007 460073102, 2-position right-angle header, male blades, 0.295" (7.50 mm) pitch, tin-plated brass contacts, rated 18 A at 600 V, through-hole solder, board lock, locking ramp, operating -40°C to 75°C.
| Parameter | Value |
|---|---|
| Series | Sabre 46007 |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Male Blades |
| Fastening type | Locking Ramp |
| Voltage rating | 600 V |
| Current rating | 18 A |
| Operating temperature | -40°C ~ 75°C |
| Color | Black |
| Contact material | Brass |
| Material - insulation | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Pitch | 0.295\" (7.50mm) |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 2 |
| Contact finish thickness | 60.0µin (1.52µm) |
The Molex Sabre 460073102 is the 2-position member of the Sabre 46007 series — a right-angle through-hole header with male blades, 0.295" (7.50 mm) pitch, tin-plated brass contacts rated 18 A at 600 V. The glass-filled PA46 insulation handles the -40°C to 75°C operating range. This is a power interconnect for board-to-wire harness assemblies where a single power pair needs a robust, vibration-resistant connection.
The pitch is 0.295" (7.50 mm).
Rated 18 A per circuit at 600 V, with tin-plated brass contacts.
No — the 431603106 is a 6-position header; the 460073102 is 2-position. They share the same pitch, current rating, and locking ramp, but the position count difference requires a board layout change.
