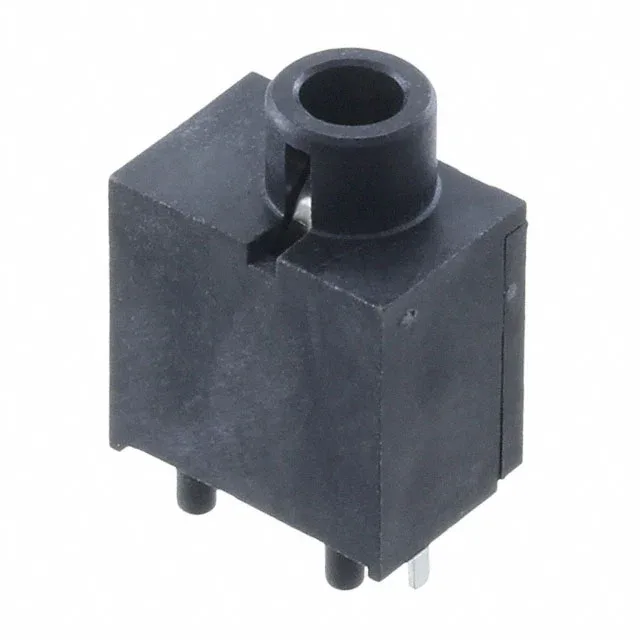

Molex 472570001
MPN472570001
Active
CONN JACK STEREO 3.5MM PCB
$1.44Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series47257
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 47257 |
| Mounting | Through Hole |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -40°C ~ 85°C |
| Body color | Black |
| Contact material | Brass, Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
| Contact material - plating | Gold |
| Gender | Female |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Stereo (3 Conductor, TRS) |
| Actual diameter | 0.140\" (3.56mm) |
| Internal switch | Single Switch |
| Number of positions (Contacts) | 3 Conductors, 4 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
